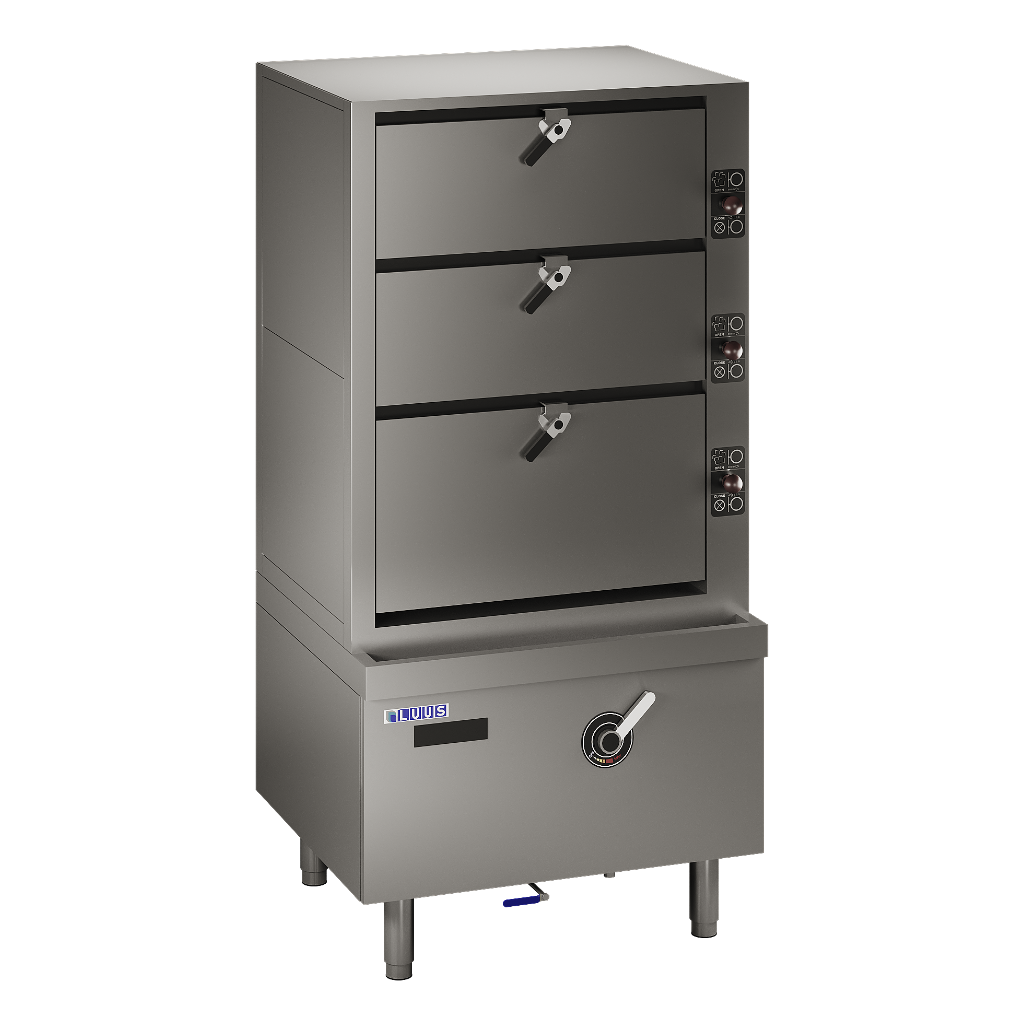

900mm Commercial 3 Tier Induction Steam Cabinet

Model: ESC-90



Our steamer cabinet is ideal for high-volume large-scale Asian style steaming. This ESC model has a 30kW rapid induction high-frequency coil technology which produces steam within 5 minutes of start-up. Three tiered cabinets with total max load of 14kg and gasket sealed doors to lock in steam effectively.



Features

  • Ideal for high-volume large-scale Asian style steaming
  • 30kW induction produces steam within 5 minutes of start-up
  • Three tiered cabinets with total max load of 14kg
  • Gasket sealed door to lock in steam more effectively
  • Automatic water refill mechanism for easy operation
  • Lower ambient heat for a more comfortable kitchen
  • 90%+ thermal efficiency results in lower energy costs
  • Safer than gas with zero carbon emissions or combustion
  • Durable, versatile, and easy to clean and service
  • AISI grade stainless used in all external panels
  • High quality engineering and craftsmanship throughout
  • Isolated bottom ensured user safety at all times



Steam Cabinet

  • 30kW rapid induction high-frequency coil technology
  • 8 level heat settings with LED visual power display
  • 3 gasket sealed door cabinets with locking handles
  • Multiple rack positions within each cabinet section
  • Control steam volumes released into individual sections
  • Automatic water-refill float mechanism



Water Treatment

  • Pentair Claris N Filter supplied
  • Reverse Osmosis (RO) is highly recommended in areas with high chloride content
Specifications
  • Power Ratings: 30kW, 41.7A, 50Hz
  • 3 Phase Electrical Connection
  • Hard wired or fit cable and plug (not supplied)
  • Protection Ratings: IPX4
  • Working Height: 660mm
  • Dimensions: 910 x 810 x 1850H @ 190kg
  • Packed Dimensions: 940 x 860 x 2020H @ 203kg
Downloads
WARRANTY

1 Year Included + 1 Year Extendable upon registration

ESC-90: 900mm Commercial 3 Tier Induction Steam Cabinet

  • 2 Year Platinum Warranty with Luus Commercial Kitchen Equipment
