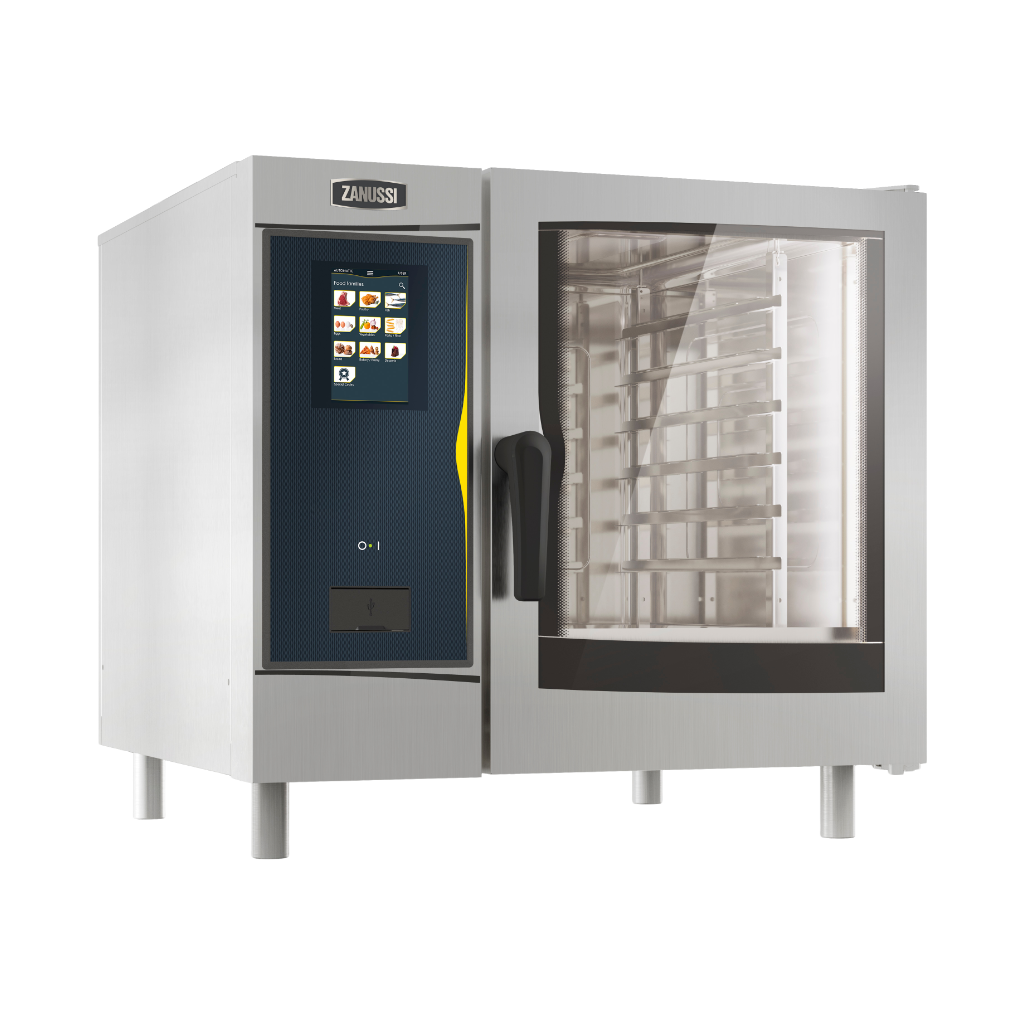

Magistar 6 Tray GN 1/1 Touch Screen Electric Combi Oven

PNC: 218737



The new Zanussi Magistar Combi Oven is the ultimate assistant in any kitchen. Designed to be robust, reliable and efficient in even the most complex settings, the Magistar range truly offers a cooking experience like few others. With the 11 new special cooking functions, a focus on performance and cooking uniformity, you are guaranteed to have exceptional and consistent results every time.



Main Features

  • Multilingual touchscreen with colour-blind accessibility
  • Integrated steam generator for precise control
  • Automatic humidity sensing for consistent results
  • Dry convection cooking up to 300°C
  • Combined steam and convection cooking
  • Steam cooking for delicate food preparation
  • Smart food-specific cooking with AI optimisation
  • Stores 1,000 programmable cooking recipes
  • Manages 20 simultaneous cooking operations
  • Seven-speed reversible fan for even cooking
  • Six-point probe ensures maximum accuracy
  • Upload images for customised cooking programmes
  • Automatic pre-heating and rapid cool-down
  • Reduced-power mode for slow cooking
  • Customisable or lockable user interface
  • USB transfer for HACCP and recipes
  • Remote connectivity and HACCP monitoring
  • QR code access to training resources
  • Automatic backup mode minimises downtime
  • Displays energy usage after each cycle



Special Cycles

  • Regeneration for plated and tray meals
  • Low-temperature cooking preserves food quality
  • Dough proving for bakery production
  • EcoDelta cooking with probe temperature control
  • Dedicated sous-vide cooking programme
  • Replicates traditional static oven cooking
  • Pasta pasteurisation for enhanced food safety
  • Dehydration for fruits, meats and vegetables
  • HACCP-compliant food safety monitoring
  • Advanced pasteurisation-controlled cooking process



Additional Features

  • Precise airflow for even temperature control
  • Automatic self-cleaning with descaling system
  • Optimises cooking schedules for efficiency
  • Quick access to favourite functions
  • Task scheduling with personalised alerts
  • Integrated grease collection compatibility
  • Flexible solid or liquid cleaning chemicals



Construction

  • Cool-touch double-glazed door construction
  • Hygienic seamless chamber for easy cleaning
  • Durable 304 AISI stainless steel construction
  • Front-access control board simplifies servicing
  • Integrated retractable spray gun system
  • IPX5-rated washdown protection certification
  • Includes GN tray rack as standard



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage:
218730 (ZCOE61T2S0) 400-430 V/3N ph/50-60 Hz
Electrical power, default: 11.1 kW
Circuit breaker required


Water
Water inlet "FCW" connection: 3/4"
Pressure, bar min/max: 1-4.5 bar
Drain "D": 50mm
Max inlet water supply temperature: 30 °C
Chlorides: <17 ppm
Conductivity: >285 μS/cm
Electrolux recommends the use of treated water, based on testing of specific water conditions.
Please refer to user manual for detailed water quality information.

Installation:
Clearance: Clearance: 5 cm rear and right hand sides.
Suggested clearance for service access: 50 cm left hand side.

Capacity:
GN: 6 - 1/1 Gastronorm
Max load capacity: 30 kg

Key Information:
Door hinges: Right Side
External dimensions, Width: 867 mm
External dimensions, Height: 808 mm
External dimensions, Depth: 775 mm
Weight: 122 kg
Net weight: 122 kg
Shipping weight: 137 kg
Shipping height: 1025 mm
Shipping width: 905 mm
Shipping depth: 905 mm
Shipping volume: 0.84 m³
