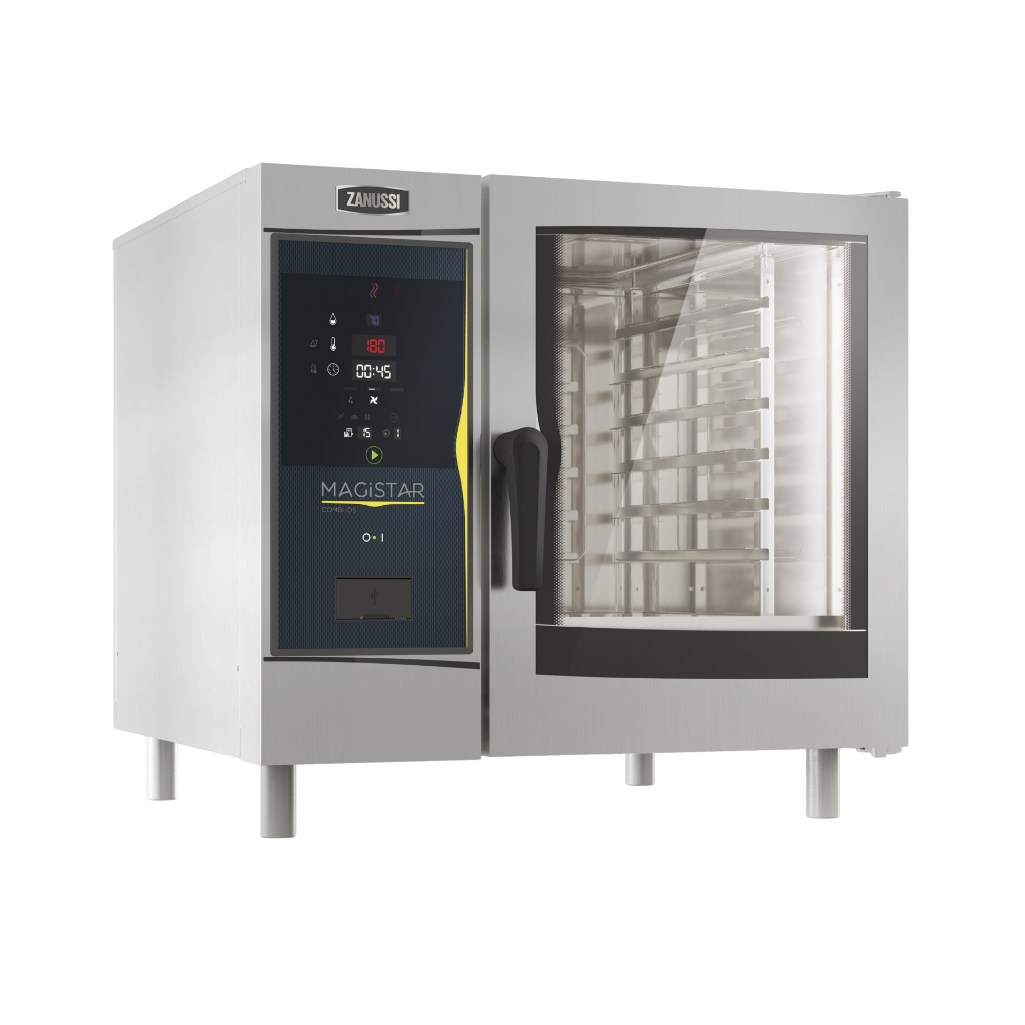

Magistar 6 Tray GN 1/1 Digital Control Electric Combi Oven

PNC: 218813


The new Zanussi Magistar Combi Oven is the ultimate assistant in any kitchen. Designed to be robust, reliable and efficient in even the most complex settings, the Magistar range truly offers a cooking experience like few others. With the 11 new special cooking functions, a focus on performance and cooking uniformity, you are guaranteed to have exceptional and consistent results every time.


Main Features

  • LED interface with guided user controls
  • Integrated steam generator for precise control
  • Automatic humidity sensing for consistent results
  • Dry convection cooking up to 300°C
  • Combined steam and convection cooking
  • Steam cooking for delicate food preparation
  • Probe-controlled cooking maintains temperature difference
  • Regeneration programme for reheating plated meals
  • Stores 100 programmable cooking recipes
  • Precise airflow for even temperature control
  • Five-speed reversible fan for even cooking
  • Single-core probe for accurate temperature monitoring
  • Automatic pre-heating and rapid cool-down
  • Reduced-power mode for slow cooking
  • Automatic self-cleaning with descaling system
  • Integrated grease collection compatibility
  • USB transfer for HACCP and recipes
  • Remote connectivity and HACCP monitoring
  • Automatic backup mode minimises downtime
  • Flexible solid or liquid cleaning chemicals



Construction

  • Cool-touch double-glazed door construction
  • Hygienic seamless chamber for easy cleaning
  • Durable 304 AISI stainless steel construction
  • Front-access control board simplifies servicing
  • IPX5-rated washdown protection certification
  • Includes GN tray rack as standard



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage:
218830 (ZCOE61B2S0) 400-430 V/3N ph/50-60 Hz
Electrical power, default: 11.1 kW
Circuit breaker required

Water
Water inlet "FCW" connection: 3/4"
Pressure, bar min/max: 1-4.5 bar
Drain "D": 50mm
Max inlet water supply temperature: 30 °C
Chlorides: <17 ppm
Conductivity: >285 μS/cm
Electrolux recommends the use of treated water, based on testing of specific water conditions.
Please refer to user manual for detailed water quality information.

Installation
Clearance: Clearance: 5 cm rear and right hand sides.
Suggested clearance for service access: 50 cm left hand side.

Capacity
GN: 6 - 1/1 Gastronorm
Max load capacity: 30 kg

Key Information
Door hinges: Right Side
External dimensions, Width: 867 mm
External dimensions, Height: 808 mm
External dimensions, Depth: 775 mm
Weight: 122 kg
Net weight: 122 kg
Shipping weight: 137 kg
Shipping volume: 0.84 m³
