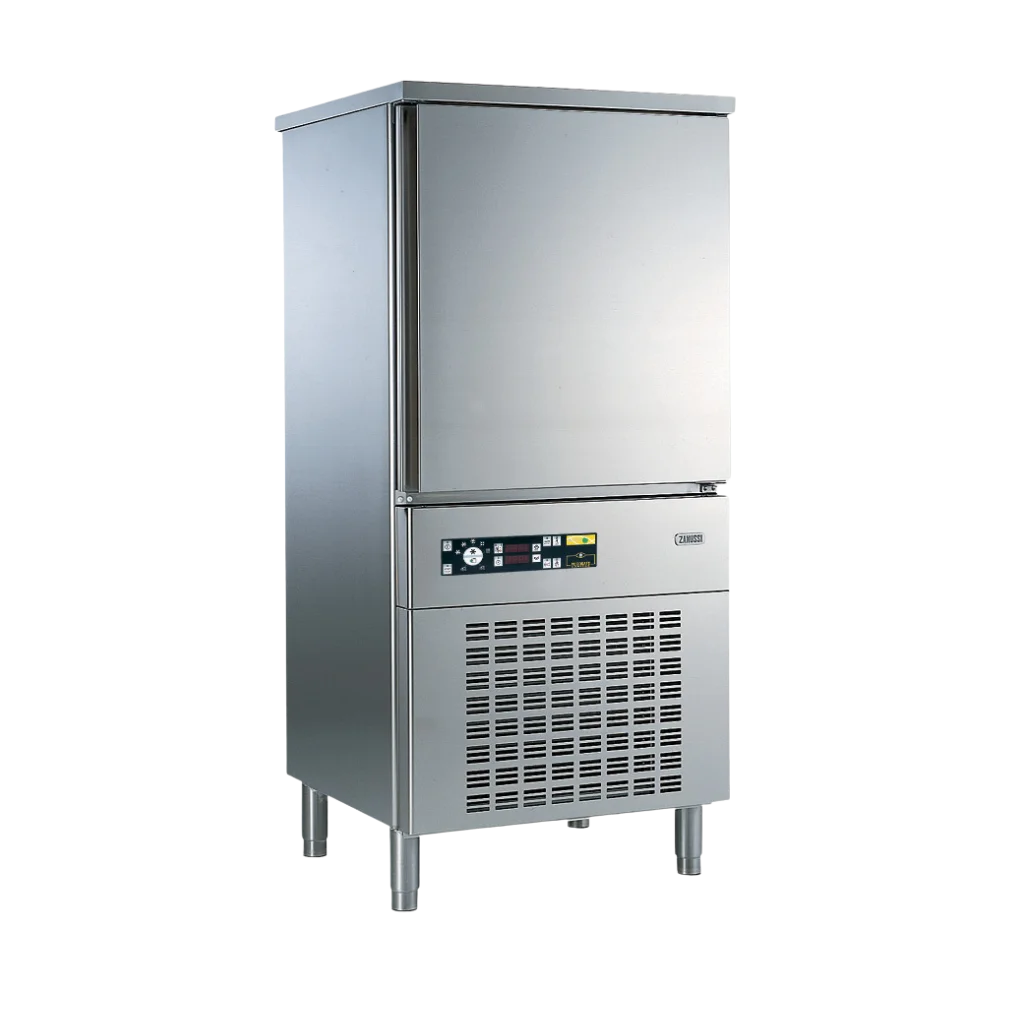

Crosswise 10 Tray GN 1/1 40/25kg Blast Chiller-Freezer

PNC: 111353


The Zanussi Professional Range of Blast Chillers has been innovatively designed to meet your chilling needs. With the focus on food safety, the Rapido is a quality additional to your kitchen to assist with food safety, waste reduction and workflow efficiency. The added ability to fully integrate with the Magistar Combi Ovens ensures the Rapido range best optimises your valuable kitchen space making it the ideal solution to any modern kitchen.


Main Features

  • Automatic holding maintains target temperatures
  • Chills 40kg from 90°C rapidly
  • Freezes 25kg to -36°C rapidly
  • Automatic soft and hard chilling modes
  • Preset freezing programmes for all foods
  • Continuous cooling for high-volume production
  • Controlled thawing for safe food defrosting
  • Adjustable temperatures for cooling and thawing
  • AI-powered cycle completion time estimates
  • Single-core probe included as standard
  • HACCP monitoring capability built in
  • Reliable performance in 40°C environments
  • Automatic and manual defrosting options
  • Multi-purpose shelving for varied applications
  • Optional three-point probe for accuracy



Construction

  • IP21-rated equipment protection
  • No water connection installation required
  • Hinged evaporator access for cleaning
  • Optional waste container or drain connection
  • Integrated refrigeration unit as standard
  • Durable 304 AISI stainless steel construction
  • Anti-rust protected evaporator design
  • Heated door frame prevents condensation
  • Reversible door for flexible installation
  • Door stay prevents odours and moisture



User Interface & Data Management

  • Dual displays for operating information
  • Remote connectivity and HACCP monitoring



Included Accessories

  • 1 of 1 single-sensor probe for blast chiller/freezers



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-415 V/3N ph/50 Hz
Electrical power, max: 2.7 kW
Energy consumption: 0.0737 kWh/kg

Installation
Clearance: 5 cm on sides and back.
Please see and follow detailed installation instructions provided with the unit

Capacity
Number and type of grids: 10 (GN 1/1; 600x400)
Number and type of basins: 10 (360x250x80h)

Key Information
External dimensions, Width: 762 mm
External dimensions, Depth: 760 mm
External dimensions, Height: 1644 mm
Net weight: 140 kg
Shipping weight: 161 kg
Shipping volume: 1.3 m³

Refrigeration Data
Refrigeration power at
evaporation temperature: -10 °C
Operating temperature min.: 16 °C
Operating temperature max.: 40 °C
Condenser cooling type: AIR


Product Information (EN17032 – Commission Regulation EU 2015/1095)
Test performed in a test room at 30°C to chill/ freeze (+10°C/-18° C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.
Chilling Cycle Time (+65°C to +10° C): 84 min
Full load capacity (chilling): 40 kg
Freezing Cycle Time (+65°C to -18°C): 236 min
Full load capacity (freezing): 25 kg
