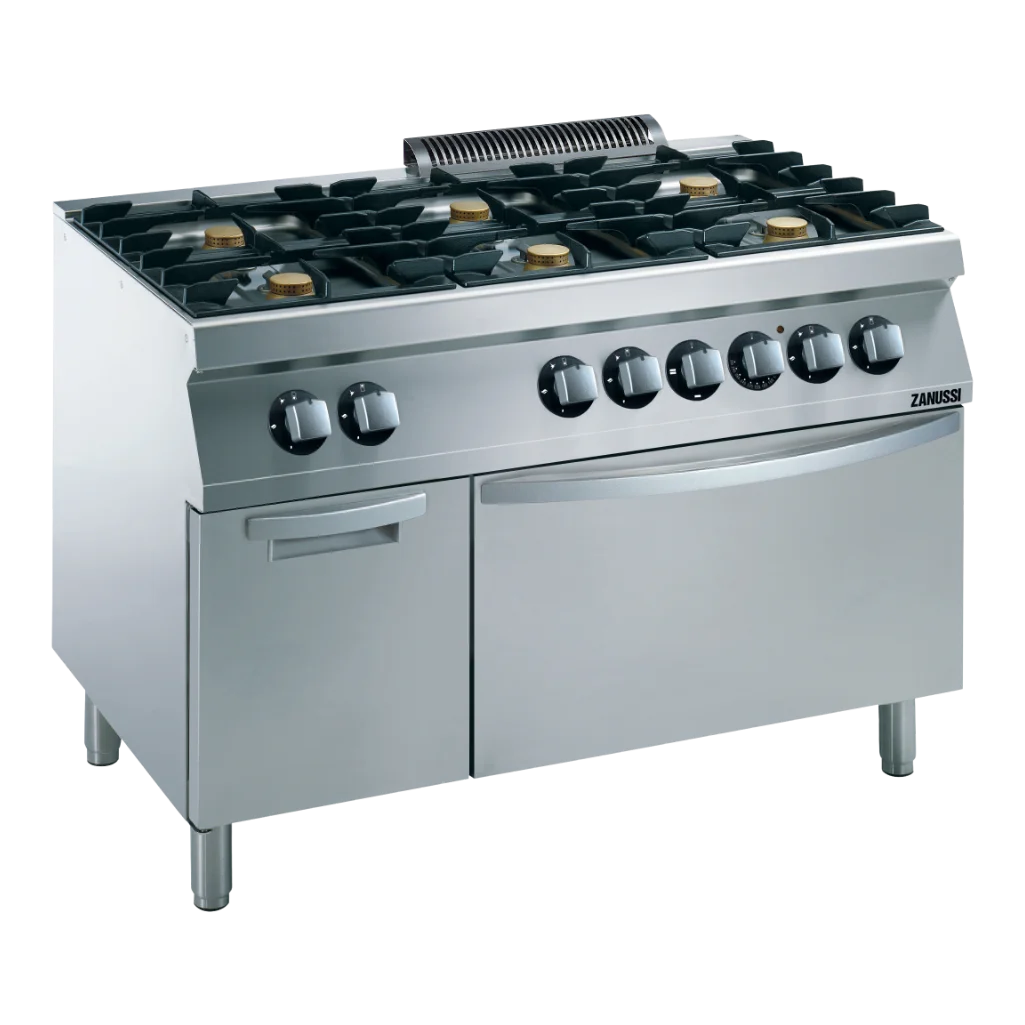

EVO700: 1200mm Commercial Gas 6 Burner Cooktop with Electric Oven + Cupboard

PNC: 372152

Main Features

Adjustable flame control for each burner
Storage cupboard for cookware and trays
Insulated double-skinned oven door
Flame failure protection prevents gas leaks
Compatible with natural gas or LPG
IPX4-rated water protection
Supports pans from small to large
Adjustable oven temperature to 300°C
Protected pilot light for added safety
Ribbed oven base improves heat distribution
Six high-efficiency 5.5kW flower burners
Adjustable stainless steel support feet
Dishwasher-safe cast iron pan supports
Electric oven with GN tray capacity

Construction

Stainless steel exterior with Scotch-Brite finish
One-piece pressed stainless steel worktop
Flush-fit design eliminates dirt traps

Included Accessories

1 of Door for open base cupboard

Optional Accessories

See Specification sheet for full list of available accessories

Specifications

Electric
Supply voltage:
372152 (Z7GCGL6C2A) 380-400 V/3N ph/50/60 Hz
Electrical power max.: 6 kW
Total Watts: 6 kW

Gas
Gas Power: 33 kW
Standard gas delivery: Natural Gas G20 (20mbar)
Gas Type Option: LPG;Town
Gas Inlet: 1/2"
Natural gas - Pressure: 7" w.c. (17.4 mbar)

Key Information
Front Burners Power: 5.5 - 5.5 kW
Back Burners Power: 5.5 - 5.5 kW
Middle Burners Power: 5.5 - 0/5.5 - 0 kW
Back Burners Dimension - mm Ø 60 Ø 60
Front Burners Dimension - mm Ø 60 Ø 60
Middle Burners Dimension - mm Ø 60 Ø 60
Oven Heat Input: 6 kW
Oven working Temperature: 140 °C MIN; 300 °C MAX
Oven Cavity Dimensions (width): 540 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 650 mm
Storage Cavity Dimensions (width): 330 mm
Storage Cavity Dimensions (height): 380 mm
Storage Cavity Dimensions (depth): 640 mm
Net weight: 120 kg
Shipping weight: 132 kg
Shipping height: 1140 mm
Shipping width: 820 mm
Shipping depth: 1300 mm
Shipping volume: 1.22 m³
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
[NOT TRANSLATED] N7CG

Downloads

Spec Sheet

CAD Drawing

Revit File

WARRANTY

1 Year Included + 1 Year Extendable upon registration
