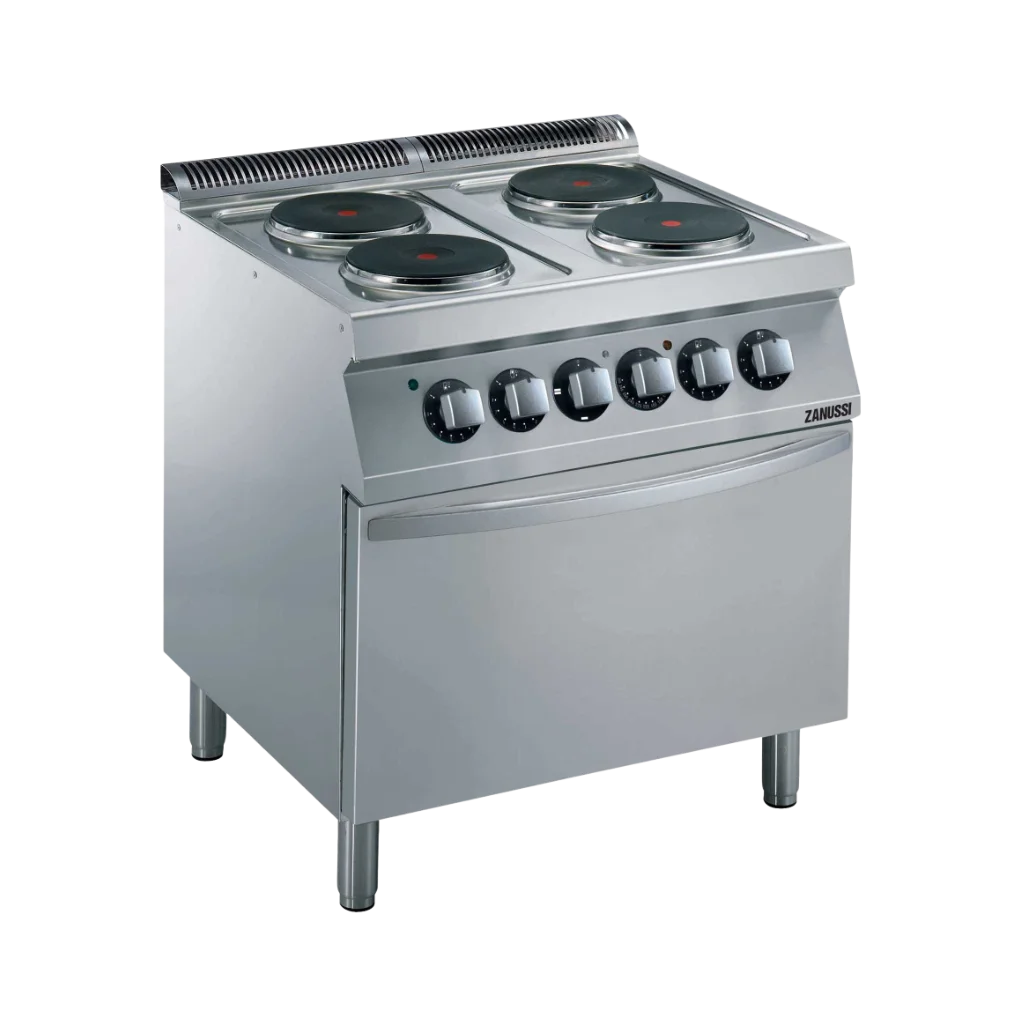

EVO700: 800mm Commercial Electric 4 Hot Plate Boiling Top with Electric Static Oven
PNC: 372016
Main Features
- Four sealed 2.6kW cast-iron hotplates
- Electric oven with insulated door
- Independent top and bottom heating controls
- Stainless steel oven with GN capacity
- Ribbed oven base improves heat distribution
- Adjustable oven temperature to 300°C
- Water-resistant control knob system design
- IPX4-rated water protection
Construction
- Stainless steel exterior with Scotch-Brite finish
- One-piece pressed stainless steel worktop
- Flush-fit design eliminates dirt traps
Included Accessories
- 1 of GN2/1 chrome grid for static oven
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Electric
Supply voltage: 380-400 V/3 ph/50/60 Hz
Total Watts: 16.4 kW
Predisposed for: 380-400V 3~ 50/60Hz
14,6-16,4kW
Key Information
Front Plates Power: 2.6 - 2.6 kW
Back Plates Power: 2.6 - 2.6 kW
Front Plates dimensions: Ø 230 Ø 230
Back Plates dimensions: Ø 230 Ø 230
Oven working Temperature: 140 °C MIN; 300 °C MAX
Oven Cavity Dimensions (width): 540 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 650 mm
Net weight: 80 kg
Shipping weight: 92 kg
Shipping height: 1080 mm
Shipping width: 820 mm
Shipping depth: 860 mm
Shipping volume: 0.76 m³
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
Certification group: EH74O
Downloads
WARRANTY
1 Year Included + 1 Year Extendable upon registration
