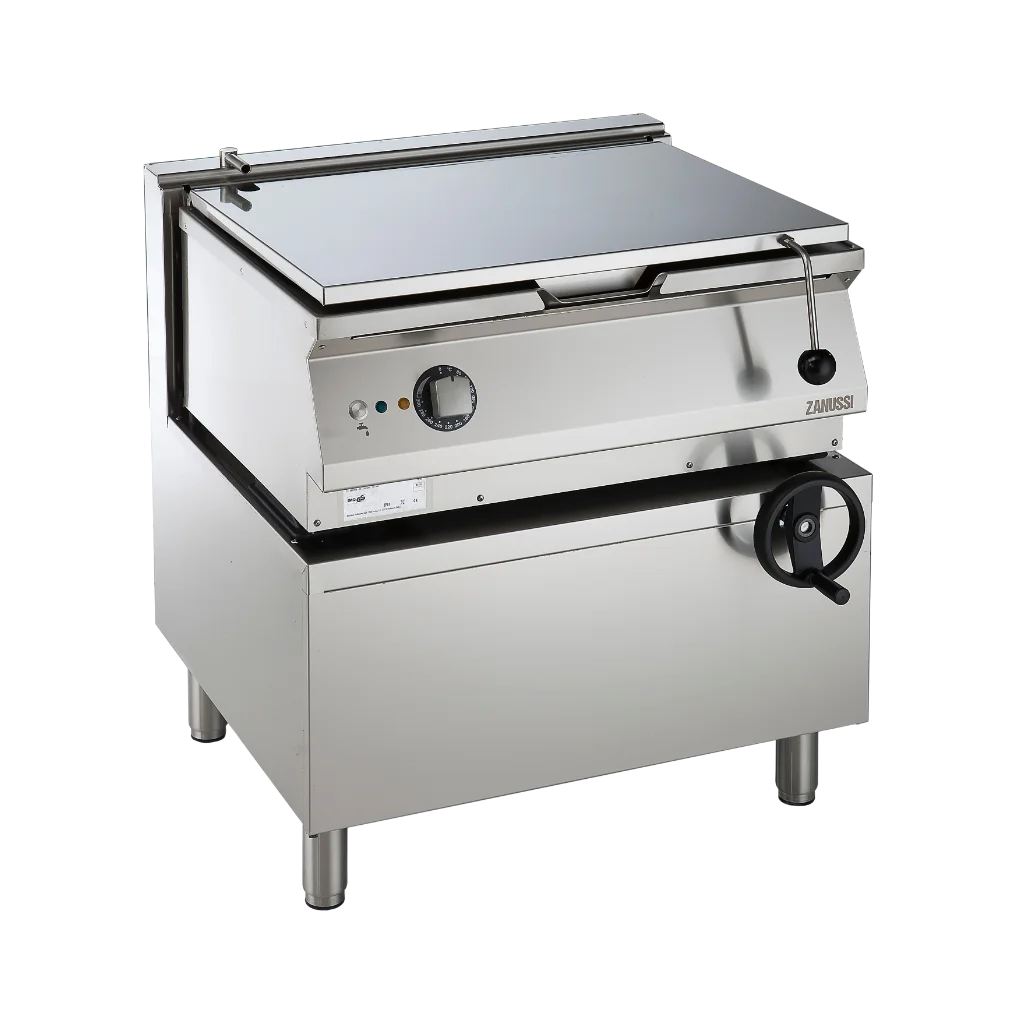

EVO700: 800mm Commercial Electric 60L Tilting Bratt Pan Duomat
PNC: 372356
Main Features
- Infrared elements provide efficient pan heating
- Adjustable thermostat for precise temperature control
- Temperature range from 120°C to 280°C
- Heat-insulated design reduces energy consumption
- Manual tilting simplifies pan emptying
- Smooth surfaces enable easy cleaning
- Adjustable stainless steel support feet
Construction
- Duomat base improves thermal performance
- Stainless steel lid reduces heat loss
- Rounded polished surfaces improve hygiene
- Stainless steel exterior with Scotch-Brite finish
- One-piece pressed stainless steel worktop
- Flush-fit design eliminates dirt traps
- 50-litre usable pan capacity
- IPX4-rated water protection certification
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 9.5 kW
Predisposed for: 380-400V 3N~ 50/60Hz
8.6-9.5kW
Key Information
Cooking Surface Depth: 410 mm
Cooking Surface Width: 680 mm
Cooking Surface Thickness: 10 mm
Cooking Well Height: 200 mm
Well Capacity, Max: 60 lt
Working Temperature MIN: 120 °C
Working Temperature MAX: 280 °C
Net weight: 105 kg
Shipping weight: 131 kg
Shipping height: 1080 mm
Shipping width: 820 mm
Shipping depth: 860 mm
Shipping volume: 0.76 m³
No clearance needed on rear sides of unit if wall is of non combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.
