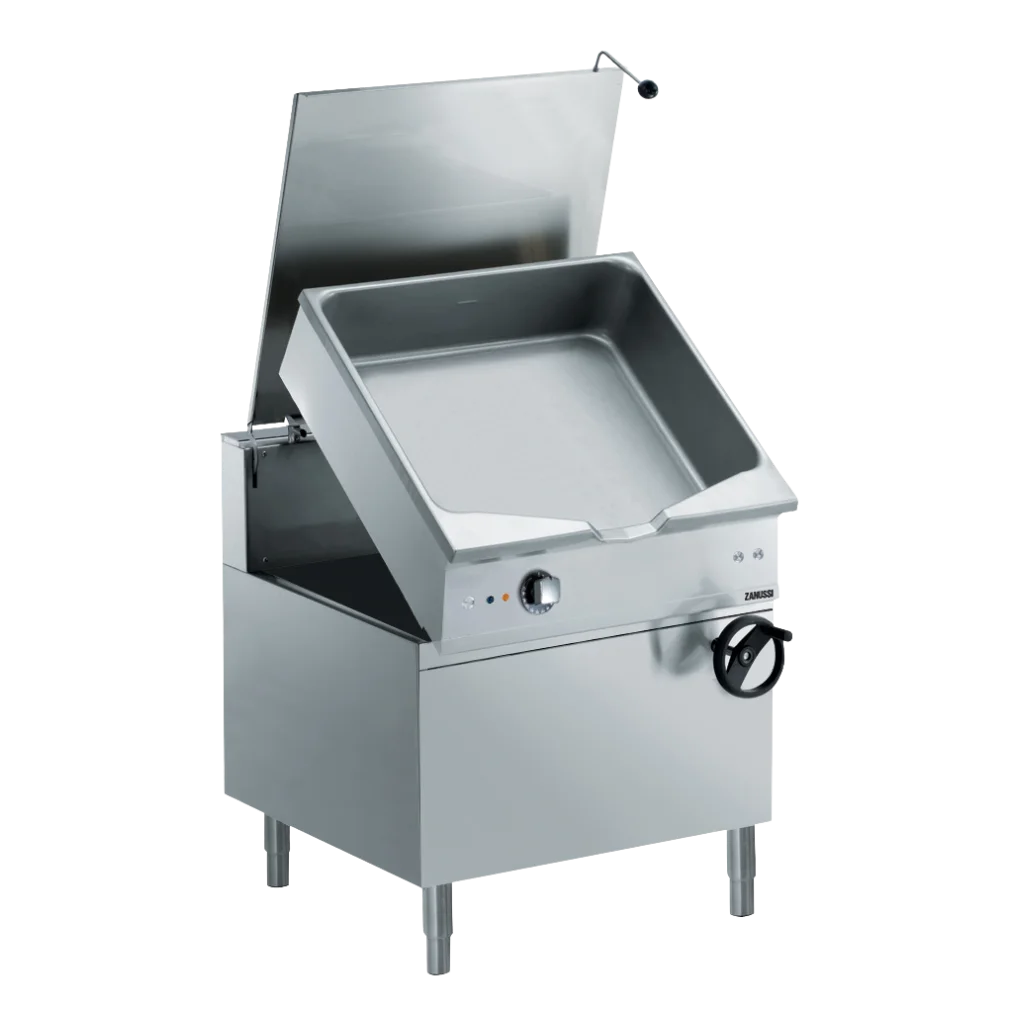

EVO900: 1000mm Commercial Electric 100L Automatic Tilting Bratt Pan Duomat
PNC: 392421
Main Features
- Multi-purpose bratt pan for versatile cooking
- Duomat surface supports wet and dry cooking
- Double-skinned pan and lid insulation
- Infrared elements provide efficient pan heating
- Insulated stainless steel lid retains heat
- IPX5-rated water protection certification
- Adjustable thermostat for precise temperature control
- Temperature range from 120°C to 300°C
- Energy regulator enables precise heat control
- Heat-insulated design reduces energy consumption
- Automatic tilting simplifies pan emptying
- Smooth surfaces enable easy cleaning
- Water-resistant control knob system design
Construction
- Duomat base improves thermal performance
- Rounded polished surfaces improve hygiene
- Stainless steel exterior with Scotch-Brite finish
- Flush-fit design eliminates dirt traps
- 85-litre usable pan capacity
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 17 kW
Predisposed for: 380-400V 3N~ 50/60Hz
15.3-17kW
Key Information
Cooking Surface Depth: 565 mm
Cooking Surface Width: 880 mm
Cooking Well Height: 130 mm
Well Capacity, Max: 100 lt
Working Temperature MIN: 120 °C
Working Temperature MAX: 300 °C
Net weight: 180 kg
Shipping weight: 200 kg
Shipping height: 1040 mm
Shipping width: 1020 mm
Shipping depth: 1100 mm
Shipping volume: 1.17 m³
No clearance needed on rear sides of unit if wall is of non-combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.
Downloads
WARRANTY
1 Year Included + 1 Year Extendable upon registration
