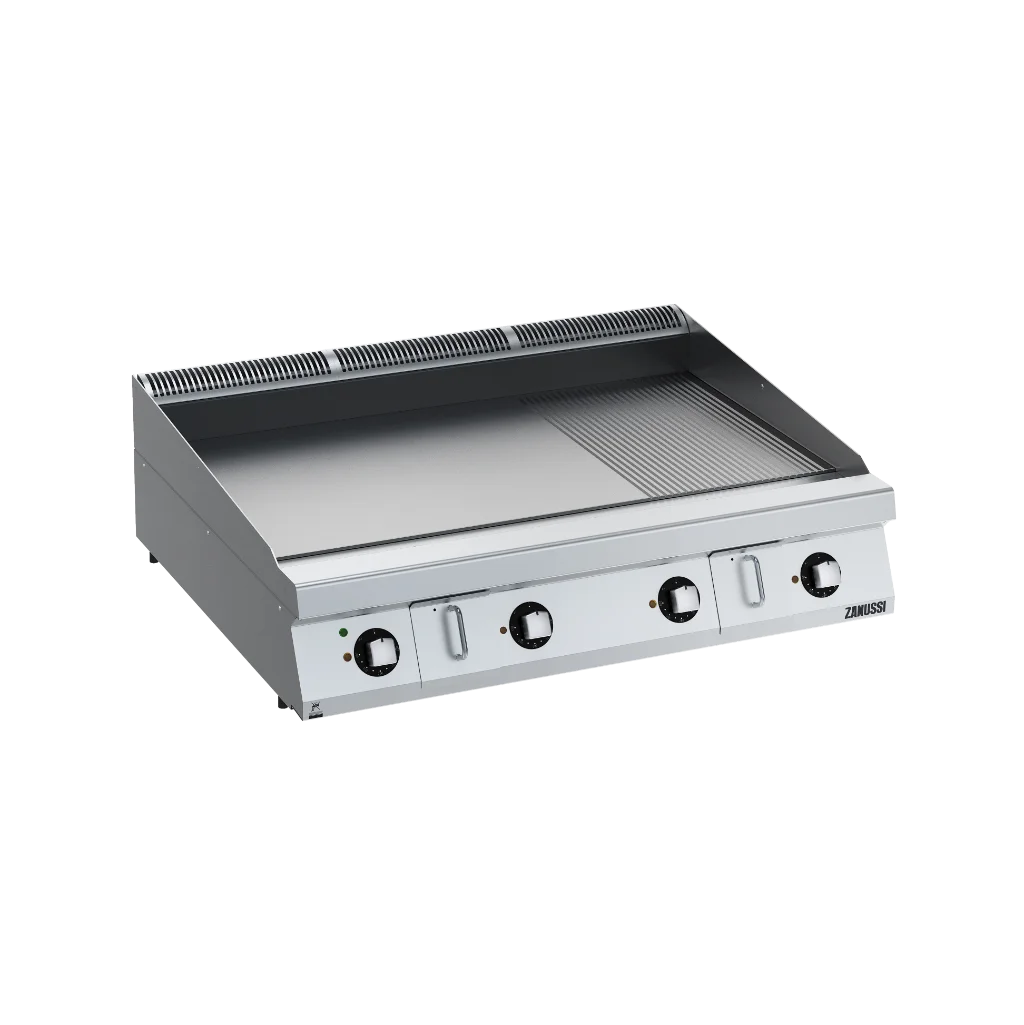

EVO900: 1200mm Commercial Electric Smooth Ribbed Chromium Plate HP
PNC: 392405
Main Features
- Mounts on cupboards, supports or cantilevers
- Safety thermostat with precise temperature control
- Water-resistant control knob system design
- IPX5-rated water protection
- Dual drains for efficient grease removal
- Stainless steel splash guards for protection
- Infrared elements provide even heating
- Four independent temperature control zones
- Temperature range from 120°C to 280°C
Construction
- Two-thirds smooth, one-third ribbed surface
- 2mm thick AISI 304 worktop
- Deep 900mm work surface provides space
- Stainless steel exterior with Scotch-Brite finish
- Flush-fit design eliminates dirt traps
- 20mm non-scratch cooking plate surface
Included Accessories
- 1 of Scraper for smooth plate for fry tops
- 1 of Scraper for ribbed plate fry tops - kit includes knife blades for both smooth and ribbed surface
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Electric
Supply voltage: 380-400 V/3 ph/50/60 Hz
Total Watts: 20 kW
Predisposed for: 380-400V 3~ 50/60Hz 18-20kW
Key Information
External dimensions, Width: 1200 mm
External dimensions, Height: 250 mm
External dimensions, Depth: 900 mm
Net weight: 150 kg
Shipping weight: 170 kg
Shipping height: 540 mm
Shipping width: 1400 mm
Shipping depth: 900 mm
Shipping volume: 0.68 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
