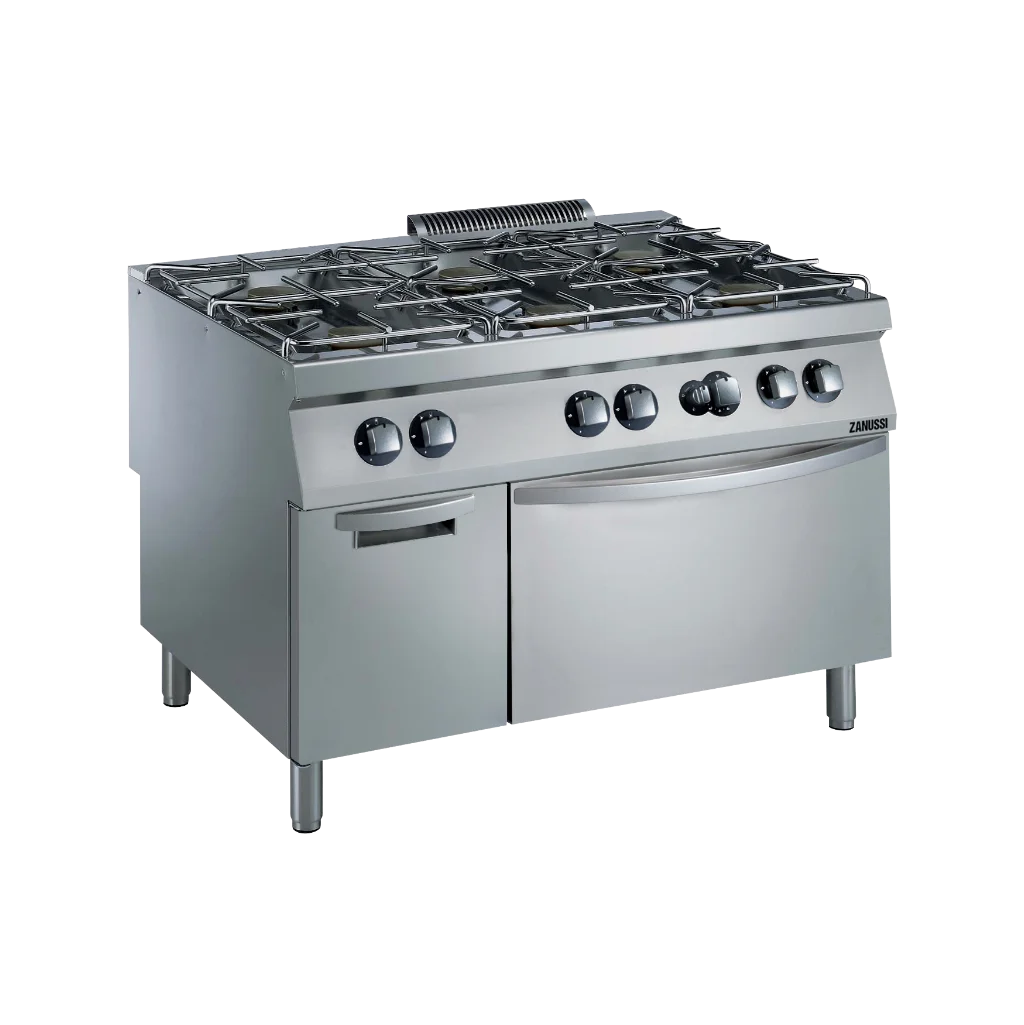

EVO900: 1200mm Commercial Gas 6 Burner Cooktop with Gas Static Oven + Cupboard

PNC: 392263

Main Features

Adjustable stainless steel feet and mounting
Six high efficiency 10kW gas burners
Storage cupboard for cookware and trays
Compatible with natural gas or LPG
Supports pans from small to large
Optimised burners for efficient combustion
Flame failure protection prevents gas leaks
Protected pilot light for added safety
Gas oven with GN tray capacity
Adjustable oven temperature to 280°C
Insulated 40mm oven door construction
Water-resistant control knob system design
IPX5-rated water protection

Construction

Stainless steel exterior with Scotch-Brite finish
2mm thick AISI 304 worktop
Flush-fit design eliminates dirt traps
Stainless steel pan supports included
Deep 900mm work surface provides space

Included Accessories

1 of Door for open base cupboard

Optional Accessories

See Specification sheet for full list of available accessories

Specifications

Gas
Gas Power: 68.5 kW
Standard gas delivery: Natural Gas G20 (20mbar)
Gas Type Option: LPG;Natural Gas
Gas Inlet: 1/2"

Key Information
Front Burners Power: 10 - 10 kW
Back Burners Power: 10 - 10 kW
Middle Burners Power: 10 - 0/10 - 0 kW
Back Burners Dimension - mm Ø 100 Ø 100
Front Burners Dimension - mm Ø 100 Ø 100
Middle Burners Dimension - mm Ø 100 Ø 100
Oven working Temperature: 120 °C MIN; 280 °C MAX
Oven Cavity Dimensions (width): 575 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 700 mm
Net weight: 203 kg
Shipping weight: 238 kg
Shipping height: 1040 mm
Shipping width: 1300 mm
Shipping depth: 1020 mm
Shipping volume: 1.38 m³
Certification group: N9CG
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.

Downloads

Spec Sheet

CAD Drawing

Revit File

WARRANTY

1 Year Included + 1 Year Extendable upon registration
