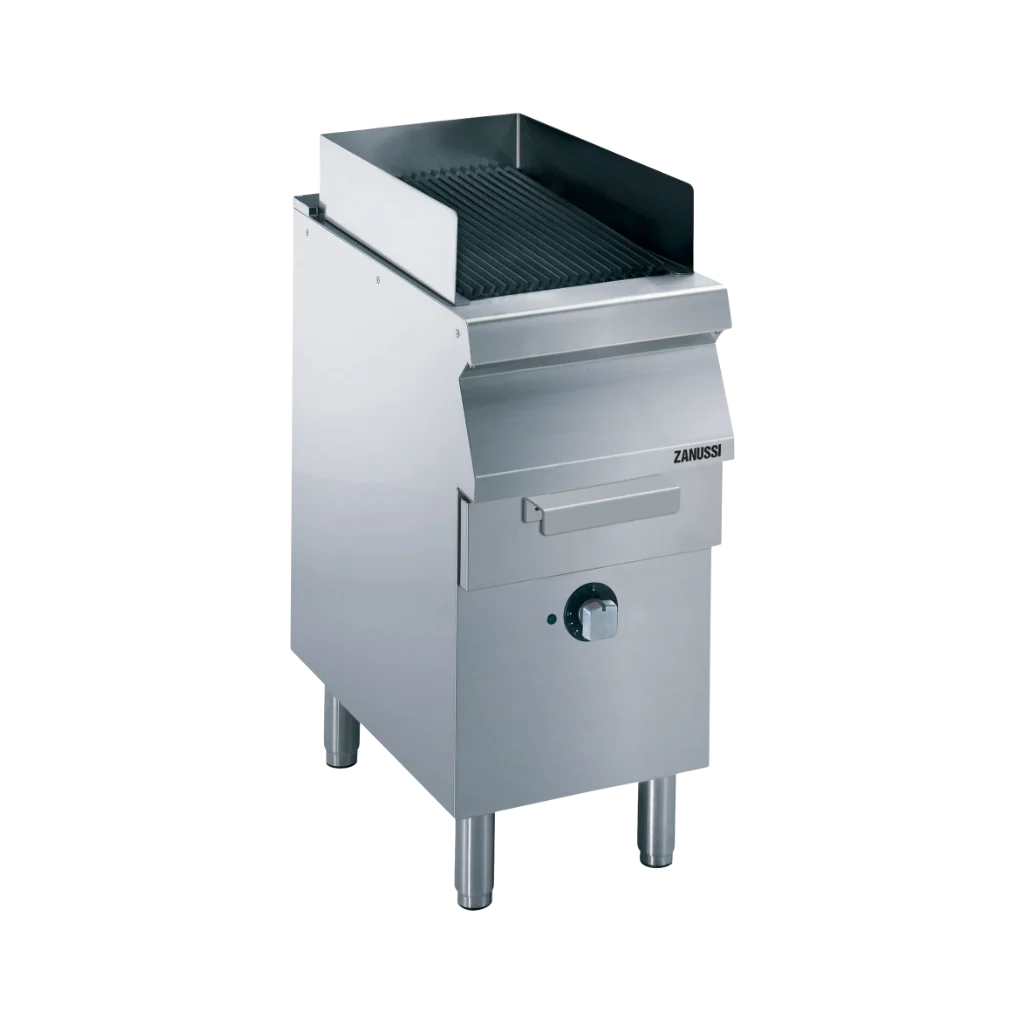

EVO900: 400mm Commercial Electric Chargrill Top
PNC: 392270
Main Features
- Incoloy heating elements beneath cooking grids
- Thermostatic control for each heating zone
- Power indicator light for operation status
- Drip tray collects fats and cooking juices
- Removable dishwasher-safe stainless steel splashguards
- Water-resistant control knob system design
- IPX5-rated water protection
- Energy output controlled via regulator knob
- Tilting heating elements simplify cleaning
- Monobloc design improves stability and installation
- Reversible plate for meat and seafood
- Water drawer creates steam for cooking
- Cool-touch exterior panels improve safety
- Enamelled cast iron grids clean easily
Construction
- Stainless steel exterior with Scotch-Brite finish
- 2mm thick AISI 304 worktop
- Flush-fit design eliminates dirt traps
- Deep 900mm work surface provides space
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Electrical power max.: 7.5 kW
Total Watts: 7.5 kW
Predisposed for: 380-400V 3N~ 50/60Hz
6,7-7,5kW
Key Information
Cooking surface width: 316 mm
Cooking surface depth: 640 mm
External dimensions, Width: 400 mm
External dimensions, Height: 850 mm
External dimensions, Depth: 900 mm
Net weight: 60 kg
Shipping weight: 80 kg
Shipping height: 1030 mm
Shipping width: 500 mm
Shipping depth: 1020 mm
Shipping volume: 0.53 m³
Certification group: N9GE
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
Downloads
WARRANTY
1 Year Included + 1 Year Extendable upon registration
