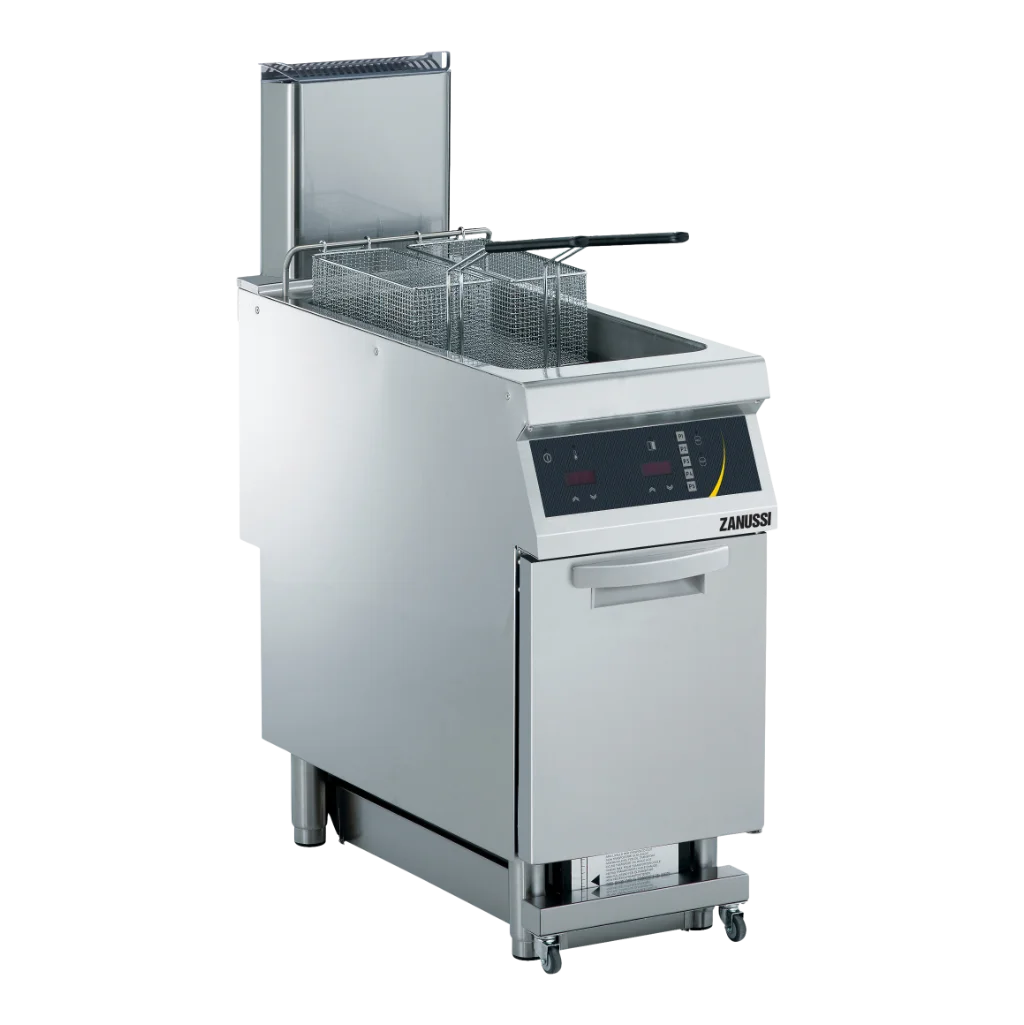

EVO900: 400mm Commercial Electric Single Well 23L V Fryer Electronic Pump

PNC: 392340



Main Features

  • Deep V-shaped well for efficient frying
  • External infrared heating for safer cleaning
  • Smart electronic temperature monitoring system
  • Overheat protection thermostat for safety
  • Integrated oil filtration and circulation system
  • Advanced filtration extends oil lifespan
  • Front-access components simplify maintenance
  • Electronic control panel for easy operation
  • IPX5-rated water protection certification
  • Oil-resistant control panel design
  • Includes two baskets and cupboard door
  • Thermostatic oil temperature control to 190°C
  • Water-resistant control knob system design
  • Optional oil quality monitoring tool



Construction

  • Stainless steel exterior with Scotch-Brite finish
  • Flush-fit design eliminates dirt traps
  • Rounded well corners for easy cleaning
  • Deep 900mm work surface provides space
  • Adjustable stainless steel feet as standard



Included Accessories

  • 1 of Stainless steel oil filter for 23 litres fryer to remove particles of grease and food residuals) - EVO900
  • 1 of door for open base cupboard
  • 1 of 2 half size baskets for 18/23lt well fryers



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 18 kW

Key Information
Usable well dimensions (width): 340 mm
Usable well dimensions (height): 575 mm
Usable well dimensions (depth): 400 mm
Well capacity: 21 lt MIN; 23 lt MAX
Performance*: 37.6 kg\hr
Thermostat Range: 110 °C MIN; 190 °C MAX
Net weight: 86 kg
Shipping weight: 100 kg
Shipping height: 1360 mm
Shipping width: 460 mm
Shipping depth: 1020 mm
Shipping volume: 0.64 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
*Based on: ASTM F1361-Deep fat fryers
Certification group: EFE91R23
