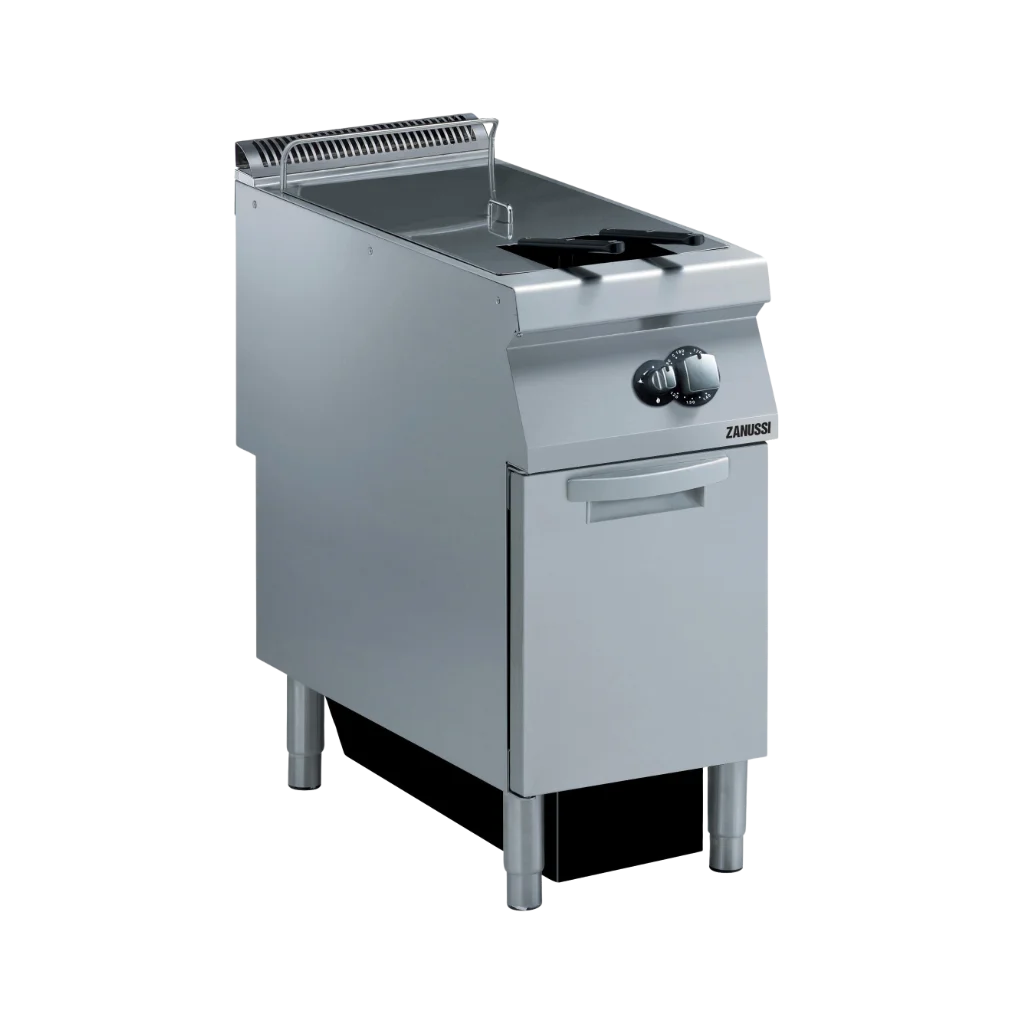

EVO900: 400mm Commercial Gas Single Well 23L Freestanding V Fryer
PNC: 392331
Main Features
- Deep V-shaped well for efficient frying
- High-efficiency 20kW burners with flame safety
- Thermostatic oil temperature control to 190°C
- Flame failure protection on each burner
- Overheat protection thermostat for safety
- Front-access components simplify maintenance
- Piezo ignition provides safer operation
- Includes two baskets and cupboard door
- Optional oil quality monitoring tool
Construction
- Stainless steel exterior with Scotch-Brite finish
- Flush-fit design eliminates dirt traps
- Rounded well corners for easy cleaning
- Deep 900mm work surface provides space
- Adjustable stainless steel feet as standard
Included Accessories
- 1 of door for open base cupboard
- 1 of 2 half size baskets for 18/23lt well fryers
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Gas
Gas Power: 21 kW
Standard gas delivery: Natural Gas G20 (20mbar)
Gas Type Option: LPG;Natural Gas
Gas Inlet: 1/2"
Key Information
Usable well dimensions (width): 340 mm
Usable well dimensions (height): 575 mm
Usable well dimensions (depth): 400 mm
Well capacity: 21 lt MIN; 23 lt MAX
Performance*: 28.4 kg\hr
Thermostat Range: 120 °C MIN; 190 °C MAX
Net weight: 57 kg
Shipping weight: 74 kg
Shipping height: 1080 mm
Shipping width: 460 mm
Shipping depth: 1020 mm
Shipping volume: 0.51 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
*Based on: ASTM F1361-Deep fat fryers
Certification group: GF91M23
Downloads
WARRANTY
1 Year Included + 1 Year Extendable upon registration
