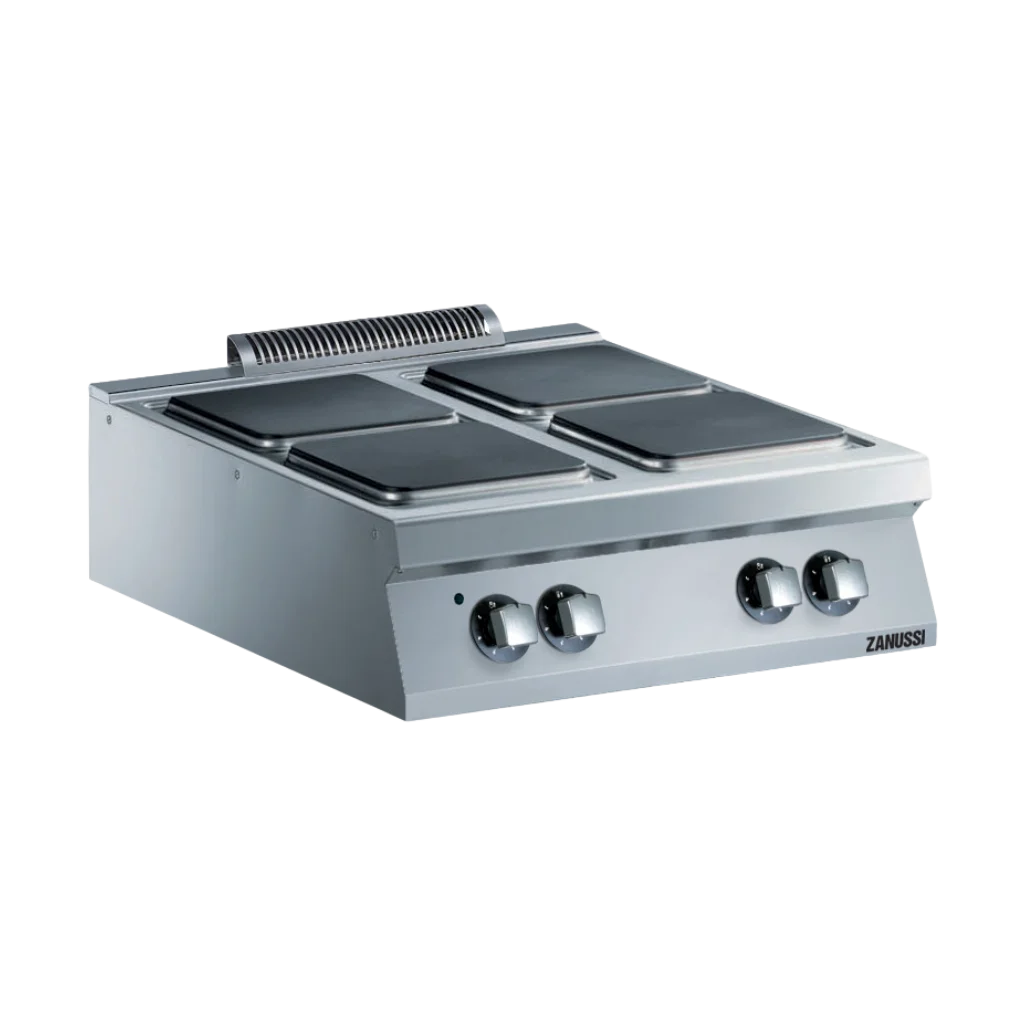

EVO900: 800mm Commercial Electric 4 Hot Square Plate Boiling Top

PNC: 392040



Main Features

  • Mounts on cupboards, supports or cantilevers
  • Four sealed 4kW cast-iron hotplates
  • Water-resistant control knob system design
  • IPX5-rated water protection
  • Compatible with ambient bases only



Construction

  • Stainless steel exterior with Scotch-Brite finish
  • 2mm thick AISI 304 worktop
  • Flush-fit design eliminates dirt traps
  • Deep 900mm work surface provides space



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 16 kW

Gas
Natural gas - Pressure: 7" w.c. (17.4 mbar)
LPG Gas Pressure: 11" w.c. (27.7 mbar)

Key Information
Front Plates Power: 4 - 4 kW
Back Plates Power: 4 - 4 kW
Front Plates dimensions: 300x300 300x300
Back Plates dimensions: 300x300 300x300
Net weight: 60 kg
Shipping weight: 71 kg
Shipping height: 530 mm
Shipping width: 1010 mm
Shipping depth: 860 mm
Shipping volume: 0.46 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.

Downloads
WARRANTY

1 Year Included + 1 Year Extendable upon registration

EVO900: 800mm Commercial Electric 4 Hot Square Plate Boiling Top

  • 2 Year Platinum Warranty with Luus Commercial Kitchen Equipment
