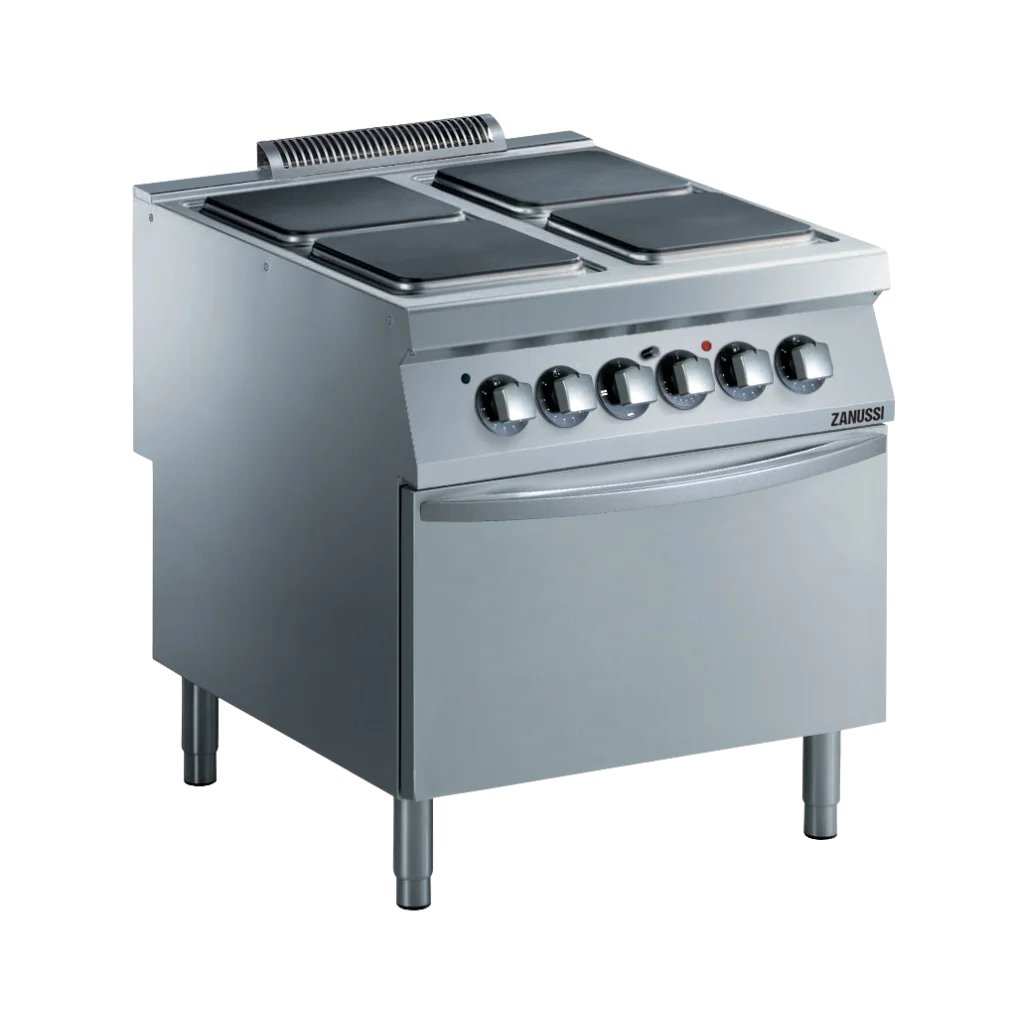

EVO900: 800mm Commercial Electric 4 Hot Square Plate Electric Oven

PNC: 392041



Main Features

  • Adjustable stainless steel feet and mounting
  • Four sealed 4kW electric hotplates
  • Safety thermostats protect cooking plates
  • Electric oven with insulated door
  • Oven accommodates GN trays and pans
  • Ribbed cast iron oven base plate
  • Independent top and bottom oven controls
  • Adjustable oven temperature to 285°C
  • Water-resistant control knob system design
  • IPX5-rated water protection
  • Compatible with ambient bases only



Construction

  • Stainless steel exterior with Scotch-Brite finish
  • 2mm thick AISI 304 worktop
  • Flush-fit design eliminates dirt traps
  • Deep 900mm work surface provides space



Included Accessories

  • 1 of GN2/1 chrome grid for static oven



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Electrical power max.: 22 kW
Total Watts: 22 kW
Predisposed for: 380-400V 3N~ 50/60Hz 20-22kW

Key Information
Front Plates Power: 4 - 4 kW
Back Plates Power: 4 - 4 kW
Front Plates dimensions: 300x300 300x300
Back Plates dimensions: 300x300 300x300
Oven Heat Input: 6 kW
Oven working Temperature: 110 °C MIN; 285 °C MAX
Oven Cavity Dimensions (width): 575 mm
Oven Cavity Dimensions (height): 300 mm
Oven Cavity Dimensions (depth): 700 mm
External dimensions, Width: 800 mm
External dimensions, Height: 850 mm
External dimensions, Depth: 900 mm
Net weight: 120 kg
Shipping weight: 139 kg
Shipping height: 1080 mm
Shipping width: 1020 mm
Shipping depth: 880 mm
Shipping volume: 0.97 m³
If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
Certification group: EH94O

Downloads
WARRANTY

1 Year Included + 1 Year Extendable upon registration

EVO900: 800mm Commercial Electric 4 Hot Square Plate Electric Oven

  • 2 Year Platinum Warranty with Luus Commercial Kitchen Equipment
