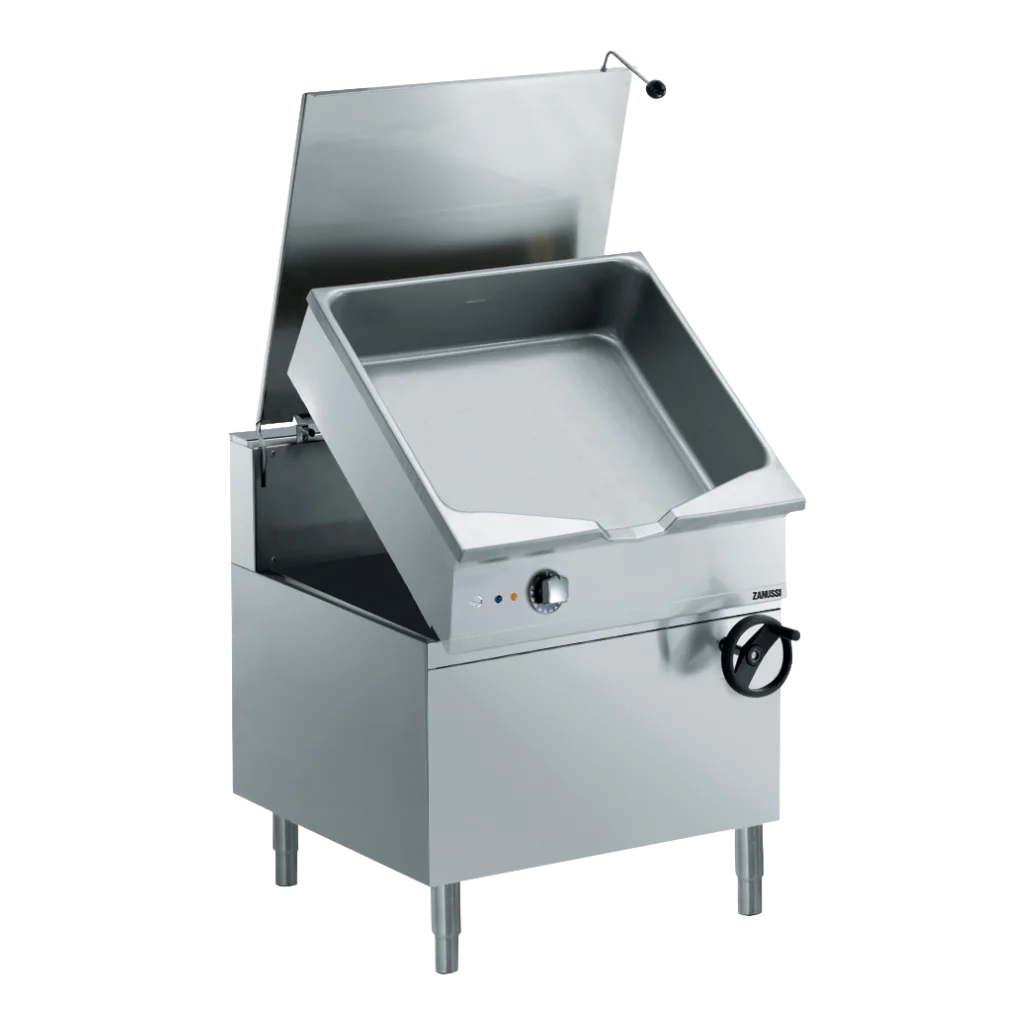

EVO900: 800mm Commercial Electric 80L Manual Tilting Bratt Pan Duomat

PNC: 392416



Main Features

  • Multi-purpose bratt pan for versatile cooking
  • Duomat surface supports wet and dry cooking
  • Double-skinned pan and lid insulation
  • Infrared elements provide efficient pan heating
  • Insulated stainless steel lid retains heat
  • IPX5-rated water protection certification
  • Adjustable thermostat for precise temperature control
  • Temperature range from 120°C to 300°C
  • Energy regulator enables precise heat control
  • Heat-insulated design reduces energy consumption
  • Manual tilting simplifies pan emptying
  • Smooth surfaces enable easy cleaning
  • Water-resistant control knob system design



Construction

  • Duomat base improves thermal performance
  • Rounded polished surfaces improve hygiene
  • Stainless steel exterior with Scotch-Brite finish
  • Flush-fit design eliminates dirt traps
  • 66-litre usable pan capacity



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 13 kW
Predisposed for: 380-400V 3N~ 50/60Hz
11.7-13kW

Key Information
Cooking Surface Depth: 565 mm
Cooking Surface Width: 680 mm
Cooking Well Height: 130 mm
Well Capacity, Max: 80 lt
Working Temperature MIN: 120 °C
Working Temperature MAX: 300 °C
Net weight: 150 kg
Shipping weight: 157 kg
Shipping height: 1100 mm
Shipping width: 1020 mm
Shipping depth: 860 mm
Shipping volume: 0.96 m³
No clearance needed on rear sides of unit if wall is of non-combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.
