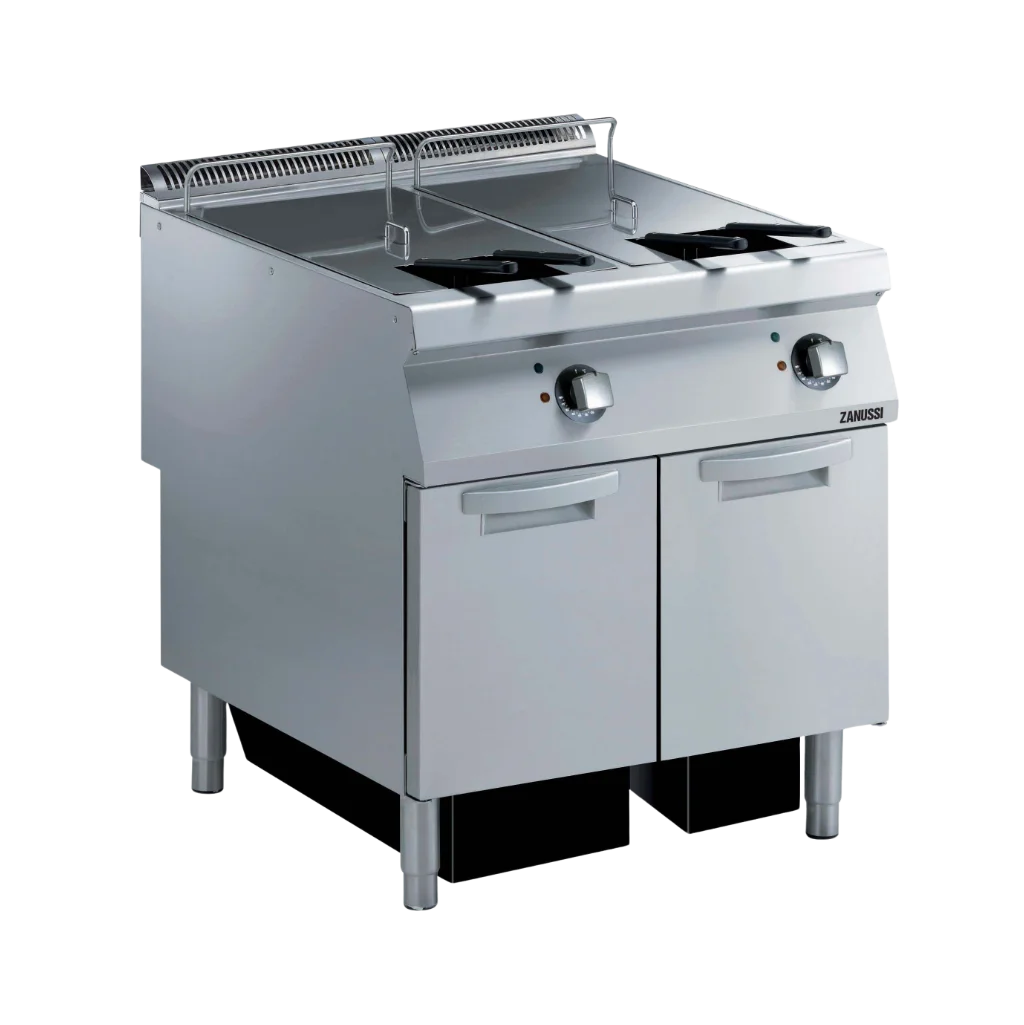

EVO900: 800mm Commercial Electric Twin Well 2x23L Freestanding V Fryer

PNC: 392338



Main Features

  • Deep V-shaped wells for efficient frying
  • Seamlessly welded wells simplify cleaning
  • External infrared heating for safer cleaning
  • Thermostatic oil temperature control to 185°C
  • Overheat protection thermostat for safety
  • Front-access components simplify maintenance
  • IPX5-rated water protection certification
  • Oil-resistant control panel design
  • Includes four baskets and cupboard doors
  • Water-resistant control knob system design
  • Optional oil quality monitoring tool



Construction

  • Stainless steel exterior with Scotch-Brite finish
  • Flush-fit design eliminates dirt traps
  • Deep 900mm work surface provides space
  • Adjustable stainless steel feet as standard


Included Accessories

  • 2 of door for open base cupboard
  • 2 of 2 half size baskets for 18/23lt well fryers


Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage: 380-400 V/3N ph/50/60 Hz
Total Watts: 36 kW

Key Information:
Usable well dimensions (width): 340 mm
Usable well dimensions (height): 575 mm
Usable well dimensions (depth): 400 mm
Well capacity: 21 lt MIN; 23 lt MAX
Performance*: 75 kg\hr
Thermostat Range: 105 °C MIN; 185 °C MAX
Net weight: 115 kg
Shipping weight:
392338 (Z9KKGDBAMEA) 120 kg
392385 (Z9KKGOBAMEA) 116 kg
Shipping height:
392338 (Z9KKGDBAMEA) 1080 mm
392385 (Z9KKGOBAMEA) 1090 mm
Shipping width: 1020 mm
Shipping depth: 860 mm
Shipping volume:
392338 (Z9KKGDBAMEA) 0.95 m³
392385 (Z9KKGOBAMEA) 0.96 m³
If appliance is set up or next to or against temperature sensitive
furniture or similar, a safety gap of approximately 150 mm should be
maintained or some form of heat insulation fitted.
*Based on: ASTM F1361-Deep fat fryers
Certification group: EFE92M23
