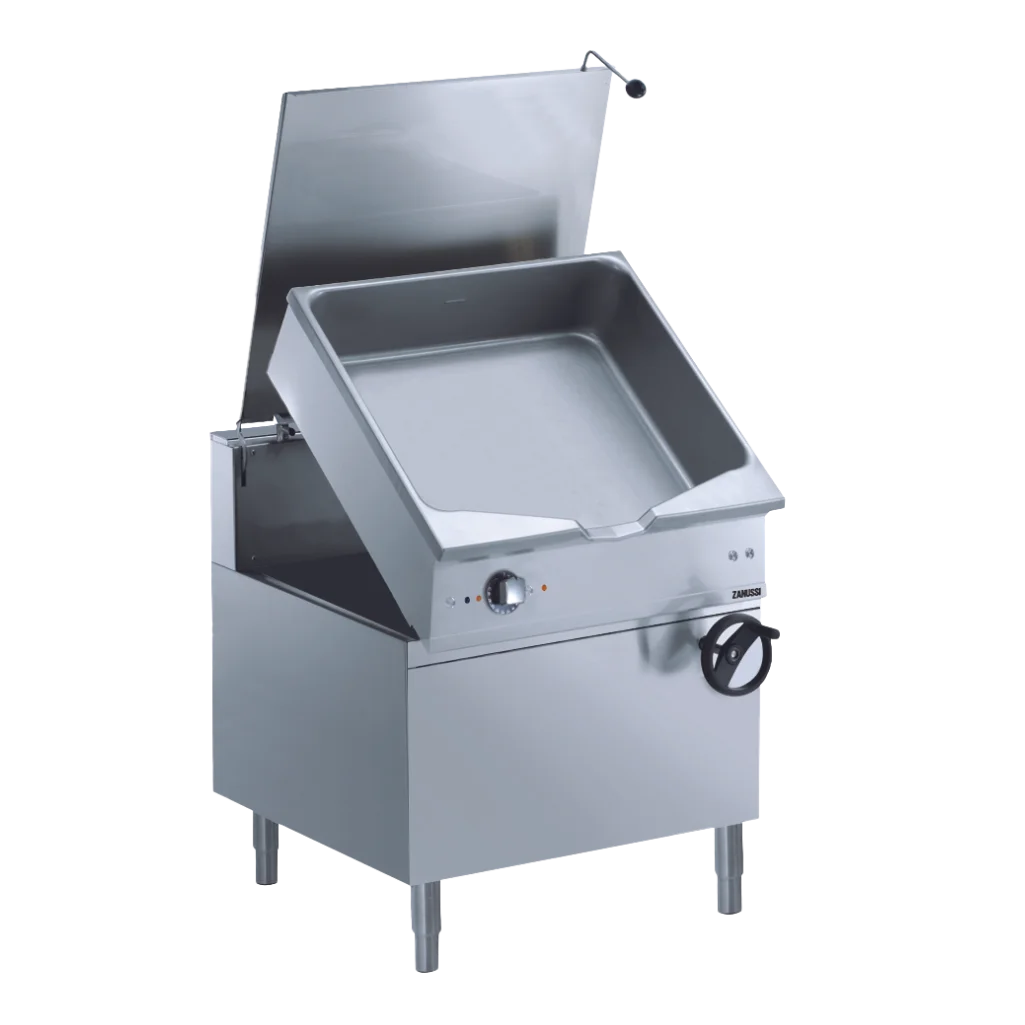

EVO900: 800mm Commercial Gas 80L Manual Tilting Bratt Pan Duomat
PNC: 392423
Main Features
- Adjustable thermostat for precise temperature control
- Heat-insulated design reduces energy consumption
- Manual tilting simplifies pan emptying
- Smooth surfaces enable easy cleaning
- Double-skinned pan and lid insulation
- Insulated stainless steel lid retains heat
- IPX5-rated water protection certification
- Temperature range from 120°C to 300°C
- Energy regulator enables precise heat control
- Water-resistant control knob system design
- Multi-purpose bratt pan for versatile cooking
- Duomat surface supports wet and dry cooking
Construction
- Rounded polished surfaces improve hygiene
- Stainless steel exterior with Scotch-Brite finish
- Flush-fit design eliminates dirt traps
- Corrosion-resistant AISI 441 gas burners
- Flame-safe burners with piezo ignition
- Duomat base improves thermal performance
- 66-litre usable pan capacity
Optional Accessories
- See Specification sheet for full list of available accessories
Specifications
Gas
Gas Power: 21 kW
Gas Type Option: LPG;Natural Gas
Gas Inlet: 1/2"
Natural gas - Pressure: 7" w.c. (17.4 mbar)
LPG Gas Pressure: 11" w.c. (27.7 mbar)
Key Information
Cooking Surface Depth: 565 mm
Cooking Surface Width: 680 mm
Cooking Surface Thickness: 10 mm
Cooking Well Height: 130 mm
Well Capacity, Max: 80 lt
Working Temperature MIN: 120 °C
Working Temperature MAX: 300 °C
Net weight: 150 kg
Shipping weight: 161 kg
Shipping height: 1080 mm
Shipping width: 1020 mm
Shipping depth: 880 mm
Shipping volume: 0.97 m³
No clearance needed on rear sides of unit if wall is of non combustible type. If wall is combustible, minimum 50 mm wall clearance should be maintained.
