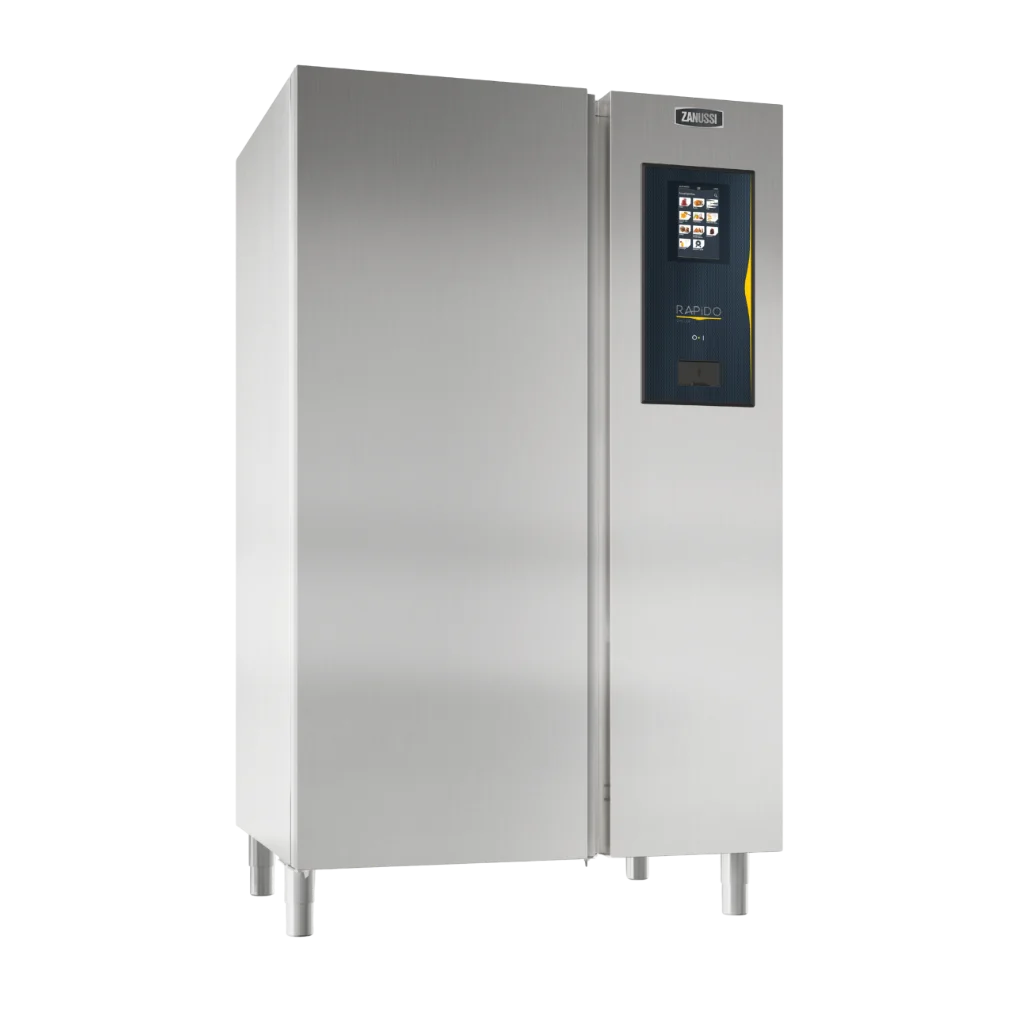

Rapido 20 Tray GN 1/1 100/85kg Touch Screen Blast Chiller (RRR)

PNC: 110550


The Zanussi Professional Range of Blast Chillers has been innovatively designed to meet your chilling needs. With the focus on food safety, the Rapido is a quality additional to your kitchen to assist with food safety, waste reduction and workflow efficiency. The added ability to fully integrate with the Magistar Combi Ovens ensures the Rapido range best optimises your valuable kitchen space making it the ideal solution to any modern kitchen.


Main Features

  • Multilingual touchscreen with colour-blind accessibility
  • Chills 100kg from 90°C in minutes
  • Freezes 85kg to -18°C rapidly
  • Automatic soft and hard chilling modes
  • Blast freezing for all food types
  • Gentle heating and freezing cycle capability
  • Automatic holding maintains target temperatures
  • Continuous cooling for high-volume production
  • Smart food-specific chilling with AI optimisation
  • Stores 1,000 programmable chilling recipes
  • Manages 20 simultaneous chilling operations
  • Three-point probe ensures food safety
  • Optional six-point probe for accuracy
  • Upload images for customised cycle settings
  • AI-powered cycle completion time estimates
  • Adjustable pre-cooling before processing cycles
  • Automatic and manual defrosting options
  • Customisable or lockable user interface
  • USB transfer for HACCP and settings
  • Remote connectivity and HACCP monitoring
  • QR code access to training resources
  • Displays energy usage after each cycle
  • Reliable performance in 43°C environments



Special Cycles

  • Automatic probe-controlled rapid chilling mode
  • Fast and efficient thawing programme
  • Safe sushi and sashimi preparation
  • Dedicated sous-vide chilling programme
  • Specialised ice cream processing cycle



Additional Features

  • Task scheduling with personalised alerts
  • Precise airflow for even temperature control
  • Quick access to favourite functions
  • Remote monitoring and data connectivity



Construction

  • Optional remote-mounted refrigeration unit
  • Eco-friendly R452a refrigerant technology
  • Automatic refrigerant pressure control system
  • Durable 304 AISI stainless steel construction
  • Anti-rust protected evaporator design
  • IP23-rated water-resistant motors and fans
  • Hygienic seamless chamber for easy cleaning
  • Removable hygienic magnetic door seal
  • Hinged evaporator access for cleaning
  • Door stay prevents odours and moisture
  • Heated door frame prevents condensation
  • No water connection installation required
  • Optional waste container or drain connection



Included Accessories

  • 1 of 3-sensor probe for blast chiller freezer



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage:
110550 (ZBFA21RE) 380-415 V/3N ph/50/60 Hz
Electrical power max.: 3 kW
Heating power: 3 kW
Circuit breaker required

Water
Drain line size: 1/2"

Installation
Clearance: 5 cm on sides and back.
Please see and follow detailed installation instructions provided with the unit

Capacity
Max load capacity: 100 kg
Trays type: GN 1/1;600x400

Key Information
Door hinges: Left Side
External dimensions, Width: 1040 mm
External dimensions, Height: 1741 mm
External dimensions, Depth: 850 mm
Net weight: 200 kg
Shipping weight: 230 kg
Shipping volume: 2.24 m³
Condenser cooling type:

Refrigeration Data
Remote refrigeration unit required.
Refrigerant type:
Suggested refrigeration power: 9480 W
Condition at evaporation
temperature: -20 °C
Condition at condensation
temperature: 40 °C
Condition at ambient
temperature: 30 °C
Connection pipes (remote) - outlet: 16 mm
Connection pipes (remote) - inlet: 95 mm
Refrigeration power calculated at a distance of linear 20mt.
