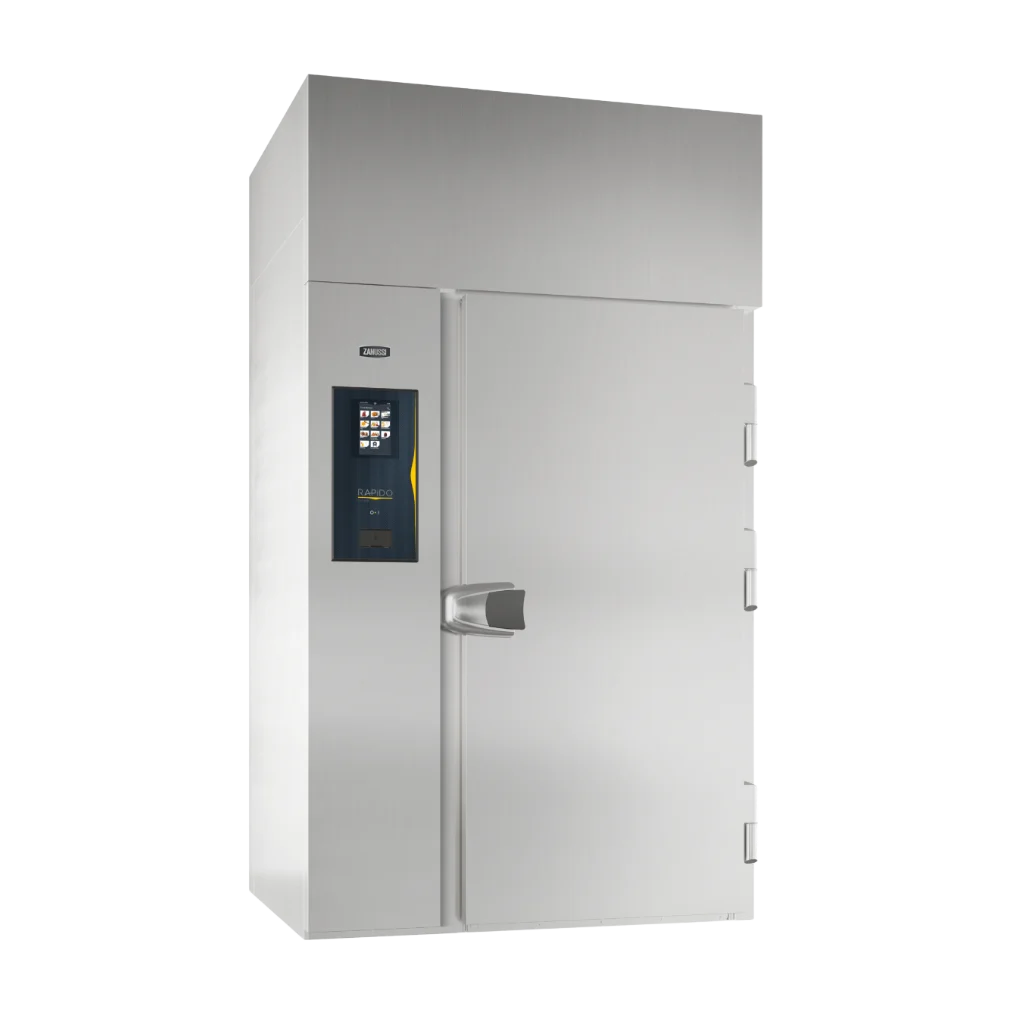

Rapido 20 Tray GN 2/1 200/170kg Roll-In Touch Screen Blast Chiller

PNC: 110555


The Zanussi Professional Range of Blast Chillers has been innovatively designed to meet your chilling needs. With the focus on food safety, the Rapido is a quality additional to your kitchen to assist with food safety, waste reduction and workflow efficiency. The added ability to fully integrate with the Magistar Combi Ovens ensures the Rapido range best optimises your valuable kitchen space making it the ideal solution to any modern kitchen.


Main Features

  • Full-colour touchscreen with multilingual support
  • Chills 200kg rapidly to 3°C
  • Freezes 170kg rapidly to -18°C
  • Automatic soft and hard chilling modes
  • Fast freezing for all food types
  • Gentle heating and freezing combination cycle
  • Automatic holding temperature saves energy
  • Continuous cooling for ongoing production
  • Smart food-specific automatic chilling programmes
  • Stores up to 1,000 custom programmes
  • Simultaneously manages 20 chilling cycles
  • Three-point probe for accurate temperature monitoring
  • Optional six-point probe for maximum precision
  • Upload images for customised cycle setup
  • Customisable pre-cooling before cycle start
  • AI-powered remaining time estimation
  • Automatic or manual defrosting and drying
  • Personalise or lock user interface settings
  • USB export for HACCP and programmes
  • Remote connectivity and HACCP monitoring ready
  • QR code access to training resources
  • Displays energy consumption after each cycle
  • Reliable operation in 43°C environments



Special Cycles

  • Automatic fastest chilling via probe control
  • Fast and controlled thawing programme
  • Sushi and sashimi food safety cycle
  • Dedicated sous-vide chilling programme
  • Ice cream production and preservation cycle



Additional Features

  • Even airflow for precise temperature control
  • Favourite functions accessible from homepage
  • Built-in calendar with personalised alerts
  • Remote monitoring and appliance connectivity



Construction

  • Optional remote refrigeration unit available
  • Eco-friendly R452a refrigerant gas used
  • Integrated refrigeration unit as standard
  • Automatic refrigerant pressure management system
  • Durable 304 AISI stainless steel construction
  • Corrosion-resistant evaporator protection coating
  • IP23-rated waterproof motors and fans
  • Seamless hygienic chamber for easy cleaning
  • Removable hygienic magnetic door gasket
  • Hinged evaporator access for easier cleaning
  • Automatically heated door frame prevents condensation



Included Accessories

  • 1 of 3-sensor probe for blast chiller freezer



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Supply voltage:
110555 (ZBFA22E) 380-415 V/3N ph/50 Hz
Electrical power max.: 11.1 kW
Circuit breaker required
Heating power: 5.85 kW

Water
Drain line size: 3/4"

Installation
Clearance: 5 cm on sides and back.
Please see and follow detailed installation instructions provided with the unit

Capacity
Max load capacity: 200 kg
Trays type: 600x400;GN 2/1

Key Information
Door hinges: Right Side
External dimensions, Width: 1400 mm
External dimensions, Height: 2470 mm
External dimensions, Depth: 1206 mm
Net weight: 605 kg
Shipping weight: 635 kg
Shipping volume: 5.27 m³
Condenser cooling type: Water

Refrigeration Data
Built-in Compressor and Refrigeration Unit
Refrigerant type: R452A
Refrigeration power: 12650 W
Refrigeration power at evaporation temperature: -20 °C
Refrigerant weight: 3000 g
Product Information (EN17032 – Commission Regulation EU 2015/1095)
Energy consumption, cycle (chilling): 0.072 kWh/kg
Chilling Cycle Time (+65°C to +10°C): 86 min
Full load capacity (chilling): 200 kg
Energy consumption, cycle (freezing): 0.2387 kWh/kg
Freezing Cycle Time (+65°C to -18°C): 270 min
Full load capacity (freezing): 170 kg
Test performed in a test room at 30°C to chill/ freeze (+10°C/-18°C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.

Downloads
WARRANTY

1 Year Included + 1 Year Extendable upon registration

Rapido 20 Tray GN 2/1 200/170kg Roll-In Touch Screen Blast Chiller

  • 2 Year Platinum Warranty with Luus Commercial Kitchen Equipment
