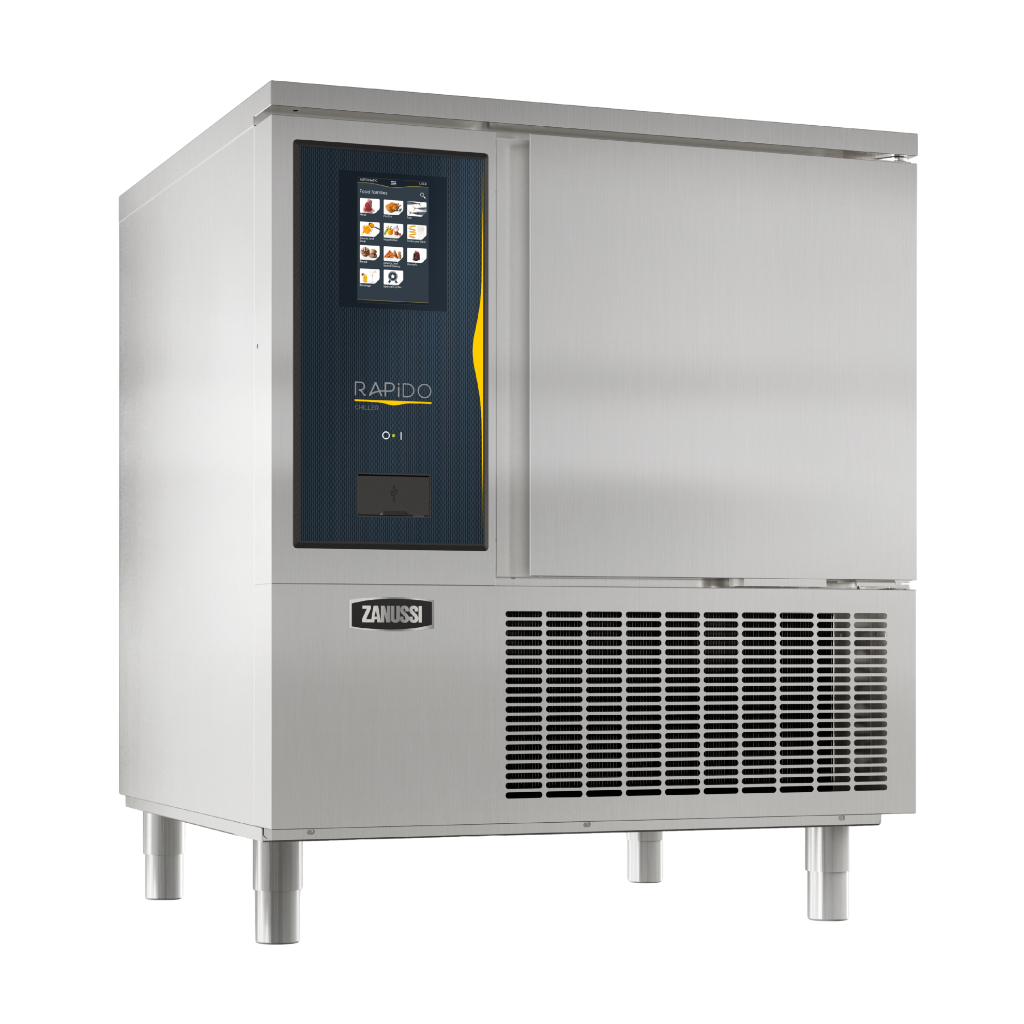

Rapido 6 Tray GN 1/1 30/30kg Touch Screen Blast Chiller

PNC: 111326



The Zanussi Professional Range of Blast Chillers has been innovatively designed to meet your chilling needs. With the focus on food safety, the Rapido is a quality additional to your kitchen to assist with food safety, waste reduction and workflow efficiency. The added ability to fully integrate with the Magistar Combi Ovens ensures the Rapido range best optimises your valuable kitchen space making it the ideal solution to any modern kitchen.



Main Features

  • Chills 30kg from 90°C rapidly
  • Automatic holding maintains target temperatures
  • Freezes 30kg to -41°C rapidly
  • Blast freezing for all food types
  • Gentle heating cycle for food preparation
  • Smart food-specific chilling with AI optimisation
  • Continuous cooling for high-volume production



Special Cycles

  • Automatic probe-controlled rapid chilling cycle
  • Dough proving for bakery production
  • Scheduled proving with delayed start
  • Fast and efficient thawing programme
  • Safe sushi and sashimi preparation
  • Dedicated sous-vide chilling programme
  • Specialised ice cream processing cycle
  • Controlled yoghurt production programme
  • Precision chocolate preparation and cooling



Additional Features

  • Stores 1,000 programmable chilling recipes
  • Manages 20 simultaneous chilling operations
  • Precise airflow for even temperature control
  • Seven-speed fan with automatic safety stop
  • Three-point probe ensures food safety
  • AI-powered cycle completion time estimates
  • Customisable pre-cooling and pre-heating functions
  • Automatic and manual defrosting options
  • Suitable for stacked tower installations
  • Reliable performance in 43°C environments
  • Multi-purpose shelving for varied applications



Construction

  • Integrated refrigeration unit as standard
  • Hygienic chamber with rounded corners
  • Anti-rust protected evaporator design
  • Automatic refrigerant pressure control system
  • Durable 304 AISI stainless steel construction
  • IP54-rated water-resistant motors and fans
  • Hinged evaporator access for cleaning
  • Removable hygienic magnetic door seal
  • Door stay prevents odours and moisture
  • Heated door frame prevents condensation



User Interface & Data Management

  • Quick access to favourite functions
  • Multilingual touchscreen with colour-blind accessibility
  • Upload images for customised cycle settings
  • Customisable or lockable user interface
  • Task scheduling with personalised alerts
  • Oven and chiller workflow integration
  • USB transfer for HACCP and settings
  • Remote connectivity and HACCP monitoring
  • QR code access to training resources
  • Displays energy usage after each cycle



Included Accessories

  • 1 of Worktop for 6 GN 1/1 right-hinged blast chiller freezer



Optional Accessories

  • See Specification sheet for full list of available accessories
Specifications

Electric
Circuit breaker required
Supply voltage: 380-415 V/3N ph/50 Hz
Electrical power, max: 2.7 kW
Heating power: 0.9 kW

Water
Drain line size: 1"1/2
Pressure, bar min: 0

Installation
Clearance: 5 cm on sides and back.
Please see and follow detailed installation instructions provided with the unit

Capacity
Max load capacity: 30 kg
Number and type of grids: 6 (GN 1/1; 600x400)
Number and type of basins: 8 (360x250x80h)

Key Information
Door hinges: Right Side
External dimensions, Width: 897 mm
External dimensions, Depth: 937 mm
External dimensions,
Height: 1060 mm
Net weight: 169 kg
Shipping weight: 185 kg
Shipping volume: 1.29 m³

Refrigeration Data
Built-in Compressor and Refrigeration Unit
Refrigeration power at evaporation temperature: -10 °C
Operating temperature min.: 16 °C
Operating temperature max.: 40 °C
Condenser cooling type: AIR

Product Information (EN17032 – Commission Regulation EU 2015/1095)
Test performed in a test room at 30°C to chill/ freeze (+10°C/-18°C) a full load of 40mm deep trays filled with mashed potatoes evenly distributed up to a height of 35 mm at starting temperature between 65° and 80°C within 120/270min.
Chilling Cycle Time (+65°C to +10°C): 74 min
Full load capacity (chilling): 30 kg
Freezing Cycle Time (+65°C to -18°C): 252 min
Full load capacity (freezing): 30 kg

Downloads
WARRANTY

1 Year Included + 1 Year Extendable upon registration
